Magnitude |
:3.1 |
| Date & Time (UTC) | 2020-07-22 18:32:41.6 |
| Date & Time (Local) | 1399/5/1 23:02:41.6 |

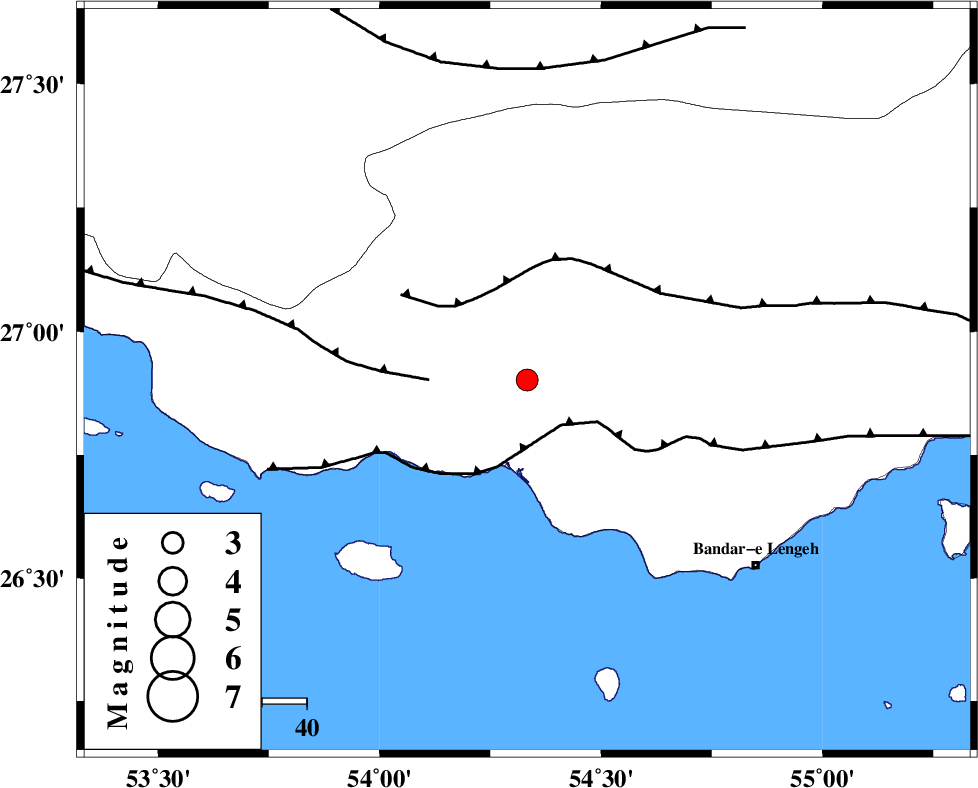

| Location | Lat:26.901 Lon: 54.333 |
| Region | Hormozgan Province, 33 km South of Bastak |
Nearest Cities |
|
| 14 km South of Jenah, Hormozgan Province | |
| 33 km South of Bastak, Hormozgan Province | |
| 66 km North West of Bandar-e lengeh, Hormozgan Province | |
| 66 km South East of Ahl, Fars Province | |
| 73 km South East of Bagh, Fars Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| ZFF1 (Length: 165 km) , Distance to epicenter: 13 km | |
| MFF1 (Length: 180 km) , Distance to epicenter: 22 km | |
| MFF3 (Length: 292 km) , Distance to epicenter: 22 km | |
| Number of Phases | 9 |
| RMS | 0.5 |
| Number of Stations | 9 |
| Error in Latitude | >7.4 km |
| Error in Longitude | 7.4 km |
| Error in Depth | 7.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 195060 | IIEES SC | AHRM | Z | 0.03 | 1 | 2020-07-22 18:34:14 | 2024-09-17 11:54:00 | n |
| 195061 | IIEES SC | AHRM | Z | 0.03 | 1 | 2020-07-22 18:33:36 | 2024-09-17 11:54:00 | n |
| 195062 | IIEES SC | KRBR | Z | 0.05 | 1 | 2020-07-22 18:33:42 | 2024-09-17 11:54:00 | n |
| 195063 | IIEES SC | YZKH | Z | 0.01 | 1 | 2020-07-22 18:34:05 | 2024-09-17 11:54:00 | n |
| 195064 | IIEES SC | NASN | Z | 0.01 | 1 | 2020-07-22 18:34:13 | 2024-09-17 11:54:00 | n |
| 195065 | IIEES SC | BSRN | Z | 0.007 | 1 | 2020-07-22 18:34:20 | 2024-09-17 11:54:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | BNDS | Z | EPg | E | 2020-07-22 18:33:12 | -0.5 | y | 0 | 190 | 73 | ||
| IIEES SC | GHIR | Z | EPn | E | 2020-07-22 18:33:14 | -0.3 | y | 0 | 203 | 319 | ||
| IIEES SC | AHRM | Z | EPn | E | 2020-07-22 18:33:36 | 0.8 | y | 0 | 370 | 306 | ||
| IIEES SC | AHRM | Z | ES | E | 2020-07-22 18:34:14 | -0.4 | y | 0 | 370 | 306 | ||
| IIEES SC | KRBR | Z | EPn | E | 2020-07-22 18:33:42 | 0.7 | y | 0 | 416 | 35 | ||
| IIEES SC | YZKH | Z | EPn | E | 2020-07-22 18:34:05 | -0.2 | y | 0 | 609 | 2 | ||
| IIEES SC | NASN | Z | EPn | E | 2020-07-22 18:34:13 | 0.3 | y | 0 | 670 | 347 | ||
| IIEES SC | BSRN | Z | EPn | E | 2020-07-22 18:34:20 | -0.1 | y | 0 | 729 | 40 | ||
| IIEES SC | GTMR | Z | EPn | E | 2020-07-22 18:34:28 | -0.3 | y | 0 | 798 | 321 | ||
