Magnitude |
:3.5 |
| Date & Time (UTC) | 2024-10-05 04:23:17.0 |
| Date & Time (Local) | 1403/7/14 07:53:17.0 |

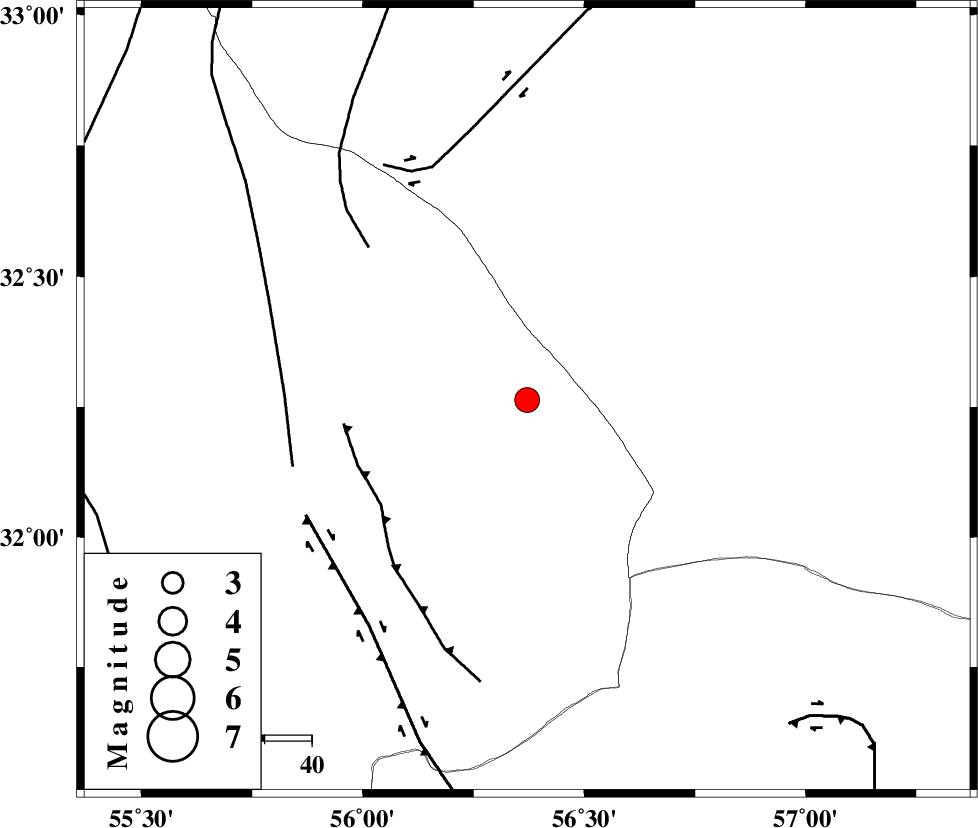

| Location | Lat:32.263 Lon: 56.371 |
| Region | Yazd Province, 118 km North-West of Ravar |
Nearest Cities |
|
| 54 km North East of Behabad, Yazd Province | |
| 65 km North East of Benestan, Yazd Province | |
| 67 km North East of Asfih, Yazd Province | |
| 80 km North East of Kushk, Yazd Province | |
| 94 km North of Kuhbanan, Kerman Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 39 km | |
| NAINI_F (Length: 342 km) , Distance to epicenter: 46 km | |
| SARBALA_F (Length: 92 km) , Distance to epicenter: 52 km | |
| Number of Phases | 17 |
| RMS | 0.5 |
| Number of Stations | 17 |
| Error in Latitude | >1.8 km |
| Error in Longitude | 1.8 km |
| Error in Depth | 15.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 195238 | IIEES SC | MEH | Z | 0.2 | 1 | 2024-10-05 04:23:49 | 2024-10-06 07:01:00 | n |
| 195239 | IIEES SC | TAFT | Z | 1 | 1 | 2024-10-05 04:23:52 | 2024-10-06 07:01:00 | n |
| 195240 | IIEES SC | ANAR | Z | 0.5 | 1 | 2024-10-05 04:23:57 | 2024-10-06 07:01:00 | n |
| 195241 | IIEES SC | NASN | Z | 0.3 | 1 | 2024-10-05 04:24:08 | 2024-10-06 07:01:00 | n |
| 195242 | IIEES SC | SHRT | Z | 0.1 | 1 | 2024-10-05 04:24:15 | 2024-10-06 07:01:00 | n |
| 195243 | IIEES SC | KBAM | Z | 0.2 | 1 | 2024-10-05 04:24:14 | 2024-10-06 07:01:00 | n |
| 195244 | IIEES SC | KLNJ | Z | 0.06 | 1 | 2024-10-05 04:24:24 | 2024-10-06 07:01:00 | n |
| 195245 | IIEES SC | JRKH | Z | 0.04 | 1 | 2024-10-05 04:24:32 | 2024-10-06 07:01:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | YZKH | Z | EPg | E | 2024-10-05 04:23:16 | -28.3 | n | 4 | 168 | 275 | ||
| IIEES SC | MEH | Z | EPg | E | 2024-10-05 04:23:49 | 0.7 | y | 0 | 193 | 240 | ||
| IIEES SC | TAFT | Z | EPn | E | 2024-10-05 04:23:52 | 0 | y | 0 | 216 | 254 | ||
| IIEES SC | KRBR | Z | EPn | E | 2024-10-05 04:23:48 | -8.2 | n | 4 | 256 | 172 | ||
| IIEES SC | BSRN | Z | EPn | E | 2024-10-05 04:23:44 | -13.4 | n | 4 | 262 | 97 | ||
| IIEES SC | ANAR | Z | EPn | E | 2024-10-05 04:23:57 | -0.8 | y | 0 | 268 | 293 | ||
| IIEES SC | NASN | Z | EPn | E | 2024-10-05 04:24:08 | 0.8 | y | 0 | 340 | 280 | ||
| IIEES SC | SHRT | Z | EPn | E | 2024-10-05 04:24:15 | 0.6 | y | 0 | 397 | 67 | ||
| IIEES SC | KBAM | Z | EPn | E | 2024-10-05 04:24:14 | -0.3 | y | 0 | 400 | 150 | ||
| IIEES SC | SHRO | Z | EPn | E | 2024-10-05 04:24:06 | -10.6 | n | 4 | 417 | 355 | ||
| IIEES SC | SBZV | Z | EPn | E | 2024-10-05 04:24:24 | 0 | y | 0 | 472 | 14 | ||
| IIEES SC | KLNJ | Z | EPn | E | 2024-10-05 04:24:24 | -0.1 | y | 0 | 474 | 253 | ||
| IIEES SC | TBJM | Z | EPn | E | 2024-10-05 04:24:36 | 9.9 | n | 4 | 496 | 48 | ||
| IIEES SC | GLO | Z | EPn | E | 2024-10-05 04:24:30 | 0.3 | y | 0 | 525 | 334 | ||
| IIEES SC | GHVR | Z | EPn | E | 2024-10-05 04:24:31 | -0.5 | y | 0 | 537 | 297 | ||
| IIEES SC | JRKH | Z | EPn | E | 2024-10-05 04:24:32 | -0.7 | y | 0 | 546 | 42 | ||
| IIEES SC | KAGH | Z | EPn | E | 2024-10-05 04:24:42 | 0.6 | y | 0 | 614 | 32 | ||
