Magnitude |
:3.6 |
| Date & Time (UTC) | 2024-10-05 04:51:29.6 |
| Date & Time (Local) | 1403/7/14 08:21:29.6 |

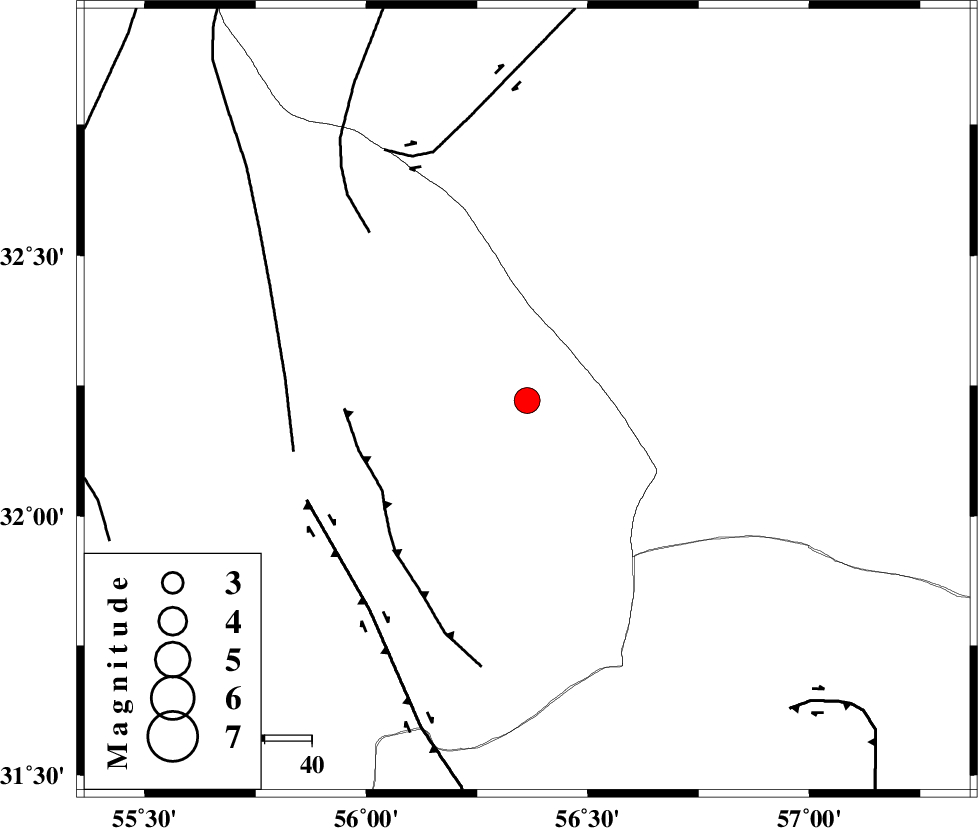

| Location | Lat:32.222 Lon: 56.363 |
| Region | Yazd Province, 114 km North-West of Ravar |
Nearest Cities |
|
| 50 km North East of Behabad, Yazd Province | |
| 60 km North East of Benestan, Yazd Province | |
| 63 km North East of Asfih, Yazd Province | |
| 77 km North East of Kushk, Yazd Province | |
| 90 km North of Kuhbanan, Kerman Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 36 km | |
| NAINI_F (Length: 342 km) , Distance to epicenter: 49 km | |
| SARBALA_F (Length: 92 km) , Distance to epicenter: 51 km | |
| Number of Phases | 18 |
| RMS | 0.5 |
| Number of Stations | 18 |
| Error in Latitude | >1.7 km |
| Error in Longitude | 1.7 km |
| Error in Depth | 11.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 195246 | IIEES SC | TAFT | Z | 1 | 1 | 2024-10-05 04:52:04 | 2024-10-06 07:10:00 | n |
| 195247 | IIEES SC | ANAR | Z | 0.6 | 1 | 2024-10-05 04:52:10 | 2024-10-06 07:10:00 | n |
| 195248 | IIEES SC | NASN | Z | 0.3 | 1 | 2024-10-05 04:52:21 | 2024-10-06 07:10:00 | n |
| 195249 | IIEES SC | KBAM | Z | 0.2 | 1 | 2024-10-05 04:52:26 | 2024-10-06 07:10:00 | n |
| 195250 | IIEES SC | SHRT | Z | 0.1 | 1 | 2024-10-05 04:52:27 | 2024-10-06 07:10:00 | n |
| 195251 | IIEES SC | KLNJ | Z | 0.05 | 1 | 2024-10-05 04:52:36 | 2024-10-06 07:10:00 | n |
| 195252 | IIEES SC | GHVR | Z | 0.09 | 1 | 2024-10-05 04:52:44 | 2024-10-06 07:10:00 | n |
| 195253 | IIEES SC | JRKH | Z | 0.05 | 1 | 2024-10-05 04:52:46 | 2024-10-06 07:10:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | YZKH | Z | EPg | E | 2024-10-05 04:51:29 | -28.4 | n | 4 | 168 | 276 | ||
| IIEES SC | MEH | Z | EPg | E | 2024-10-05 04:52:01 | 0.8 | y | 0 | 190 | 241 | ||
| IIEES SC | TAFT | Z | EPn | E | 2024-10-05 04:52:04 | 0.2 | y | 0 | 214 | 255 | ||
| IIEES SC | KRBR | Z | EPn | E | 2024-10-05 04:52:01 | -7.7 | n | 4 | 251 | 171 | ||
| IIEES SC | BSRN | Z | EPn | E | 2024-10-05 04:51:56 | -13.5 | n | 4 | 262 | 96 | ||
| IIEES SC | ANAR | Z | EPn | E | 2024-10-05 04:52:10 | -0.9 | y | 0 | 269 | 293 | ||
| IIEES SC | NASN | Z | EPn | E | 2024-10-05 04:52:21 | 0.8 | y | 0 | 340 | 281 | ||
| IIEES SC | KBAM | Z | EPn | E | 2024-10-05 04:52:26 | -0.3 | y | 0 | 396 | 150 | ||
| IIEES SC | SHRT | Z | EPn | E | 2024-10-05 04:52:27 | 0.3 | y | 0 | 400 | 67 | ||
| IIEES SC | SHRO | Z | EPn | E | 2024-10-05 04:52:18 | -11.4 | n | 4 | 421 | 356 | ||
| IIEES SC | ANJ | Z | EPn | E | 2024-10-05 04:52:29 | -0.9 | y | 0 | 425 | 328 | ||
| IIEES SC | KLNJ | Z | EPn | E | 2024-10-05 04:52:36 | 0 | y | 0 | 472 | 253 | ||
| IIEES SC | SBZV | Z | EPn | E | 2024-10-05 04:52:37 | 0 | y | 0 | 476 | 14 | ||
| IIEES SC | TBJM | Z | EPn | E | 2024-10-05 04:52:53 | 13.3 | n | 4 | 499 | 47 | ||
| IIEES SC | GLO | Z | EPn | E | 2024-10-05 04:52:44 | 0.3 | y | 0 | 529 | 334 | ||
| IIEES SC | GHVR | Z | EPn | E | 2024-10-05 04:52:44 | -0.4 | y | 0 | 538 | 298 | ||
| IIEES SC | JRKH | Z | EPn | E | 2024-10-05 04:52:46 | 0.4 | y | 0 | 550 | 42 | ||
| IIEES SC | KAGH | Z | EPn | E | 2024-10-05 04:52:54 | -0.2 | y | 0 | 618 | 32 | ||
