Magnitude |
:3.7 |
| Date & Time (UTC) | 2024-10-11 07:14:08.7 |
| Date & Time (Local) | 1403/7/20 10:44:08.7 |

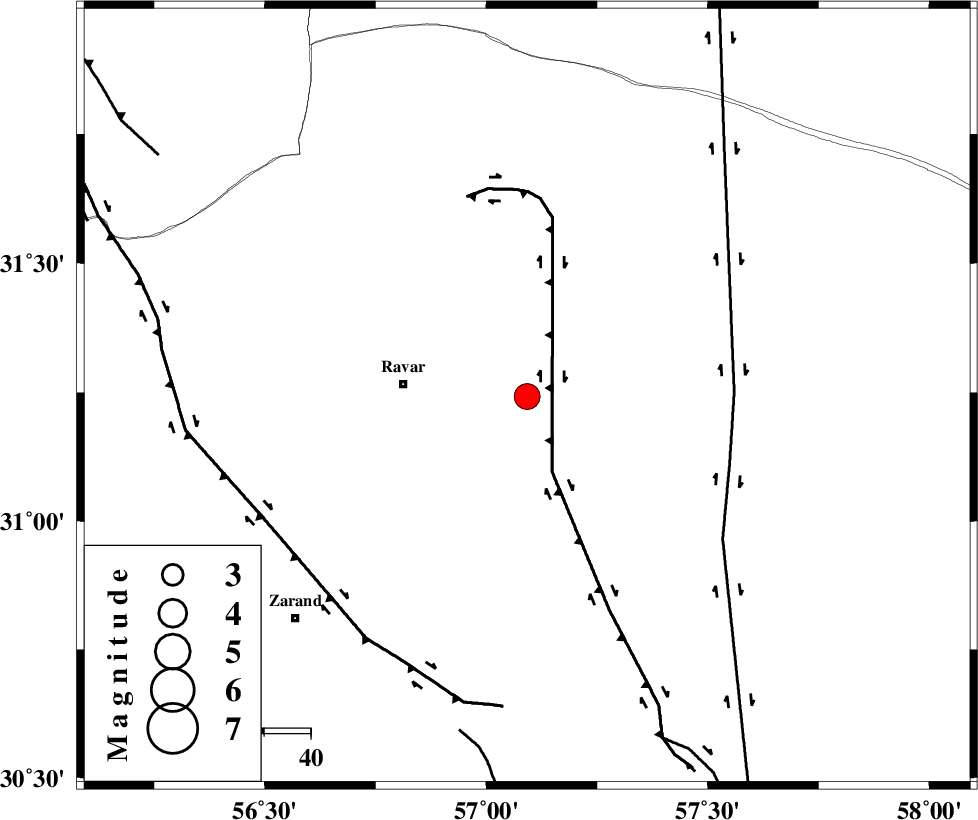

| Location | Lat:31.242 Lon: 57.092 |
| Region | Kerman Province, 27 km -East of Ravar |
Nearest Cities |
|
| 27 km East of Ravar, Kerman Province | |
| 29 km East of Dehali, Kerman Province | |
| 51 km North East of Ahmadi, Kerman Province | |
| 53 km North East of Hatkan, Kerman Province | |
| 54 km North East of Dasht-e khak, Kerman Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 17 km | |
| NAYBAND_F (Length: 258 km) , Distance to epicenter: 45 km | |
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 63 km | |
| Number of Phases | 16 |
| RMS | 0.4 |
| Number of Stations | 16 |
| Error in Latitude | >1.3 km |
| Error in Longitude | 1.3 km |
| Error in Depth | 11.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 195280 | IIEES SC | BSRN | Z | 0.8 | 1 | 2024-10-11 07:14:42 | 2024-10-12 04:23:00 | n |
| 195281 | IIEES SC | KBAM | Z | 1 | 1 | 2024-10-11 07:14:49 | 2024-10-12 04:23:00 | n |
| 195282 | IIEES SC | TAFT | Z | 0.6 | 1 | 2024-10-11 07:14:52 | 2024-10-12 04:23:00 | n |
| 195283 | IIEES SC | ANAR | Z | 0.2 | 1 | 2024-10-11 07:15:03 | 2024-10-12 04:23:00 | n |
| 195284 | IIEES SC | SHRT | Z | 0.1 | 1 | 2024-10-11 07:15:06 | 2024-10-12 04:23:00 | n |
| 195285 | IIEES SC | NASN | Z | 0.1 | 1 | 2024-10-11 07:15:11 | 2024-10-12 04:23:00 | n |
| 195286 | IIEES SC | KLNJ | Z | 0.05 | 1 | 2024-10-11 07:15:21 | 2024-10-12 04:23:00 | n |
| 195287 | IIEES SC | TBJM | Z | 0.1 | 1 | 2024-10-11 07:15:23 | 2024-10-12 04:23:00 | n |
| 195288 | IIEES SC | JRKH | Z | 0.06 | 1 | 2024-10-11 07:15:31 | 2024-10-12 04:23:00 | n |
| 195289 | IIEES SC | MRVT | Z | 0.02 | 1 | 2024-10-11 07:15:46 | 2024-10-12 04:23:00 | n |
| 195290 | IIEES SC | CHTH | Z | 0.03 | 1 | 2024-10-11 07:15:50 | 2024-10-12 04:23:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | BSRN | Z | EPn | E | 2024-10-11 07:14:42 | 0.2 | y | 0 | 209 | 67 | ||
| IIEES SC | MEH | Z | EPn | E | 2024-10-11 07:14:46 | 0.7 | y | 0 | 236 | 274 | ||
| IIEES SC | TABS | Z | EPn | E | 2024-10-11 07:14:49 | -0.3 | y | 0 | 267 | 1 | ||
| IIEES SC | KBAM | Z | EPn | E | 2024-10-11 07:14:49 | -0.1 | y | 0 | 268 | 151 | ||
| IIEES SC | YZKH | Z | EPn | E | 2024-10-11 07:14:28 | -22.2 | n | 4 | 269 | 298 | ||
| IIEES SC | TAFT | Z | EPn | E | 2024-10-11 07:14:52 | 0.2 | y | 0 | 283 | 281 | ||
| IIEES SC | ANAR | Z | EPn | E | 2024-10-11 07:15:03 | -0.5 | y | 0 | 384 | 304 | ||
| IIEES SC | ZHSF | Z | EPn | E | 2024-10-11 07:15:06 | 0.5 | y | 0 | 397 | 117 | ||
| IIEES SC | SHRT | Z | EPn | E | 2024-10-11 07:15:06 | 0.2 | y | 0 | 402 | 48 | ||
| IIEES SC | NASN | Z | EPn | E | 2024-10-11 07:15:11 | 0.2 | y | 0 | 440 | 293 | ||
| IIEES SC | KLNJ | Z | EPn | E | 2024-10-11 07:15:21 | -0.3 | y | 0 | 525 | 267 | ||
| IIEES SC | TBJM | Z | EPn | E | 2024-10-11 07:15:23 | -0.6 | y | 0 | 539 | 34 | ||
| IIEES SC | SBZV | Z | EPn | E | 2024-10-11 07:15:28 | 0.1 | y | 0 | 573 | 5 | ||
| IIEES SC | JRKH | Z | EPn | E | 2024-10-11 07:15:31 | 0.1 | y | 0 | 599 | 30 | ||
| IIEES SC | MRVT | Z | EPn | E | 2024-10-11 07:15:46 | 0.8 | y | 0 | 718 | 353 | ||
| IIEES SC | CHTH | Z | EPn | E | 2024-10-11 07:15:50 | -0.6 | y | 0 | 758 | 313 | ||
