Magnitude |
:3.3 |
| Date & Time (UTC) | 2024-10-10 18:28:22.6 |
| Date & Time (Local) | 1403/7/19 21:58:22.6 |

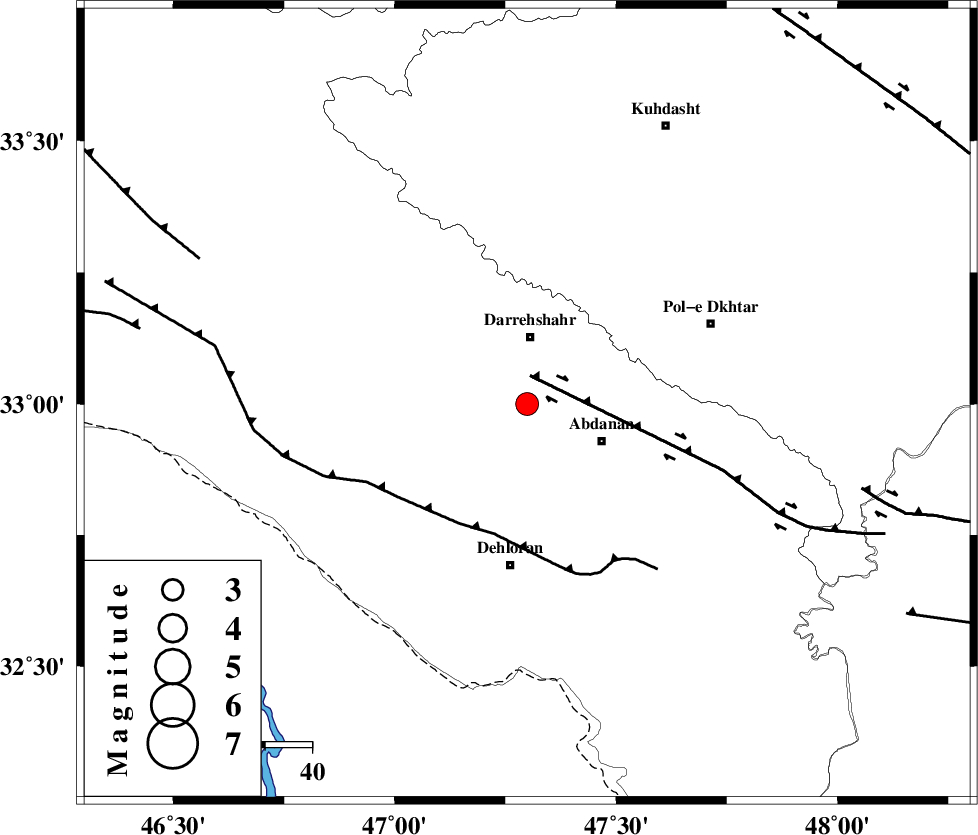

| Location | Lat:33 Lon: 47.299 |
| Region | Ilam Province, 14 km South of Darreh Shahr |
Nearest Cities |
|
| 14 km South of Darreh Shahr, Ilam Province | |
| 18 km North West of Abdanan, Ilam Province | |
| 19 km South of Dashtabad-e olia, Ilam Province | |
| 27 km North West of Sarabbagh, Ilam Province | |
| 34 km North of Dehloran, Ilam Province | |
| Depth | 9 km |
| Agency | |
Faults within 150 km: |
|
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 6 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 28 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 73 km | |
| Number of Phases | 10 |
| RMS | 0.4 |
| Number of Stations | 10 |
| Error in Latitude | >5.5 km |
| Error in Longitude | 5.5 km |
| Error in Depth | 11.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 195303 | IIEES SC | KCHF | Z | 1 | 1 | 2024-10-10 18:28:46 | 2024-10-12 04:55:00 | n |
| 195304 | IIEES SC | SRSL | Z | 0.07 | 1 | 2024-10-10 18:29:19 | 2024-10-12 04:55:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | KCHF | Z | EPg | E | 2024-10-10 18:28:46 | -0.1 | y | 0 | 143 | 350 | ||
| IIEES SC | DHR | Z | EPn | E | 2024-10-10 18:28:56 | -0.2 | y | 0 | 206 | 336 | ||
| IIEES SC | SRSL | Z | EPn | E | 2024-10-10 18:29:19 | -0.2 | y | 0 | 395 | 334 | ||
| IIEES SC | GHVR | Z | EPn | E | 2024-10-10 18:29:21 | 0.3 | y | 0 | 401 | 66 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2024-10-10 18:29:03 | -20.5 | n | 4 | 426 | 17 | ||
| IIEES SC | CHTH | Z | EPn | E | 2024-10-10 18:29:30 | -0.1 | y | 0 | 477 | 47 | ||
| IIEES SC | GIDE | Z | EPn | E | 2024-10-10 18:29:32 | -0.1 | y | 0 | 493 | 28 | ||
| IIEES SC | NASN | Z | EPn | E | 2024-10-10 18:29:35 | 0.5 | y | 0 | 516 | 92 | ||
| IIEES SC | AZR | Z | EPn | E | 2024-10-10 18:29:37 | 0.5 | y | 0 | 532 | 347 | ||
| IIEES SC | ANAR | Z | EPn | E | 2024-10-10 18:29:44 | -0.8 | y | 0 | 601 | 88 | ||
