Magnitude |
:3.6 |
| Date & Time (UTC) | 2024-10-16 13:03:33.1 |
| Date & Time (Local) | 1403/7/25 16:33:33.1 |

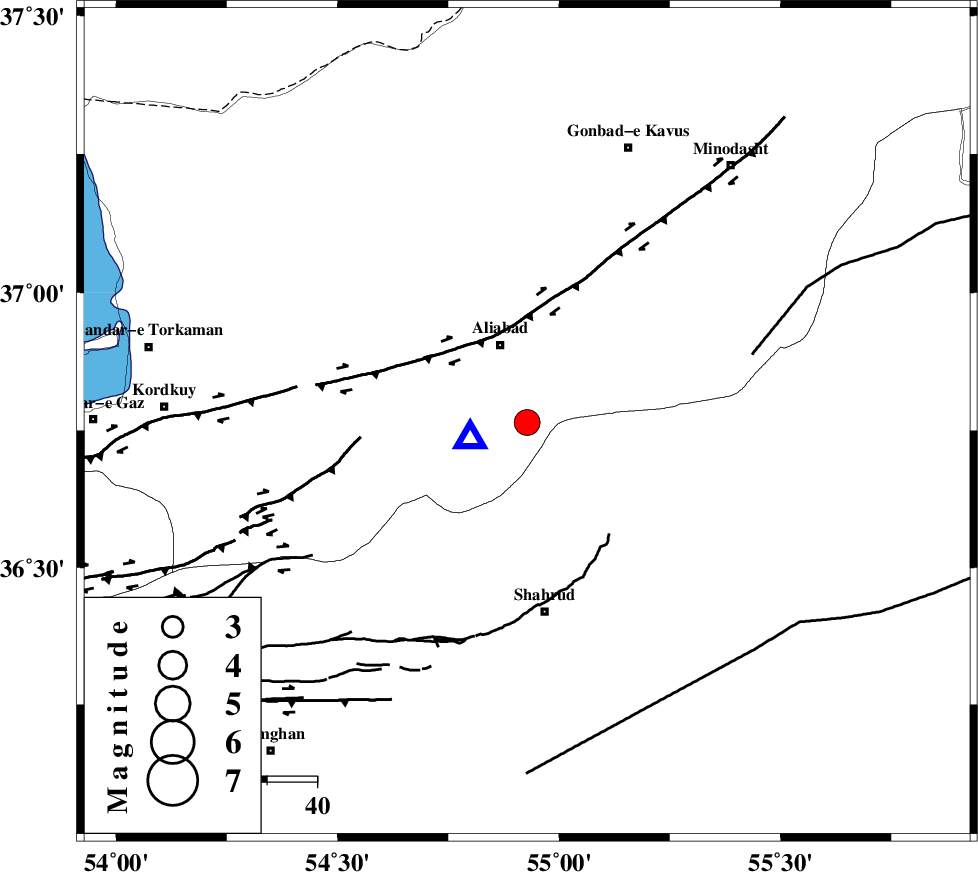

| Location | Lat:36.764 Lon: 54.928 |
| Region | Golestan Province, 17 km South of Ali Abad |
Nearest Cities |
|
| 17 km South of Ali Abad, Golestan Province | |
| 21 km North West of Qaleh-ye nokharqan, Semnan Province | |
| 28 km South of Khanbebin, Golestan Province | |
| 32 km North of Bastam, Semnan Province | |
| 33 km South West of Deland, Golestan Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| SHAVAR_F (Length: 87 km) , Distance to epicenter: 15 km | |
| KHAZAR_F (Length: 523 km) , Distance to epicenter: 27 km | |
| ASTANEH_F (Length: 72 km) , Distance to epicenter: 42 km | |
| Number of Phases | 24 |
| RMS | 0.3 |
| Number of Stations | 24 |
| Error in Latitude | >1.3 km |
| Error in Longitude | 1.3 km |
| Error in Depth | 5.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 195365 | IIEES SC | GLO | Z | 10 | 1 | 2024-10-16 13:03:50 | 2024-10-19 06:26:00 | n |
| 195366 | IIEES SC | MRVT | Z | 0.9 | 1 | 2024-10-16 13:03:56 | 2024-10-19 06:26:00 | n |
| 195367 | IIEES SC | TABS | Z | 0.09 | 1 | 2024-10-16 13:04:30 | 2024-10-19 06:26:00 | n |
| 195368 | IIEES SC | ANAR | Z | 0.1 | 1 | 2024-10-16 13:04:31 | 2024-10-19 06:26:00 | n |
| 195369 | IIEES SC | GHVR | Z | 0.3 | 1 | 2024-10-16 13:04:33 | 2024-10-19 06:26:00 | n |
| 195370 | IIEES SC | KAGH | Z | 0.03 | 1 | 2024-10-16 13:04:37 | 2024-10-19 06:26:00 | n |
| 195371 | IIEES SC | GIDE | Z | 0.09 | 1 | 2024-10-16 13:04:37 | 2024-10-19 06:26:00 | n |
| 195372 | IIEES SC | NASN | Z | 0.09 | 1 | 2024-10-16 13:04:40 | 2024-10-19 06:26:00 | n |
| 195373 | IIEES SC | TBJM | Z | 0.08 | 1 | 2024-10-16 13:04:45 | 2024-10-19 06:26:00 | n |
| 195374 | IIEES SC | TAFT | Z | 0.08 | 1 | 2024-10-16 13:04:51 | 2024-10-19 06:26:00 | n |
| 195375 | IIEES SC | MEH | Z | 0.02 | 1 | 2024-10-16 13:04:55 | 2024-10-19 06:26:00 | n |
| 195376 | IIEES SC | SHRT | Z | 0.04 | 1 | 2024-10-16 13:04:54 | 2024-10-19 06:26:00 | n |
| 195377 | IIEES SC | BSRN | Z | 0.03 | 1 | 2024-10-16 13:05:02 | 2024-10-19 06:26:00 | n |
| 195378 | IIEES SC | KLNJ | Z | 0.04 | 1 | 2024-10-16 13:05:10 | 2024-10-19 06:26:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GLO | Z | EPg | E | 2024-10-16 13:03:50 | 0 | y | 0 | 102 | 253 | ||
| IIEES SC | SHRO | Z | EPg | E | 2024-10-16 13:03:41 | -13.3 | n | 4 | 128 | 131 | ||
| IIEES SC | MRVT | Z | EPg | E | 2024-10-16 13:03:56 | 0 | y | 0 | 143 | 46 | ||
| IIEES SC | ANJ | Z | EPg | E | 2024-10-16 13:04:01 | -0.1 | y | 0 | 170 | 212 | ||
| IIEES SC | SBZV | Z | EPn | E | 2024-10-16 13:04:11 | 0.1 | y | 0 | 244 | 100 | ||
| IIEES SC | DAMV | Z | EPn | E | 2024-10-16 13:03:47 | -30.3 | n | 4 | 294 | 245 | ||
| IIEES SC | TABS | Z | EPn | E | 2024-10-16 13:04:30 | -0.2 | y | 0 | 399 | 150 | ||
| IIEES SC | ANAR | Z | EPn | E | 2024-10-16 13:04:31 | -0.2 | y | 0 | 411 | 195 | ||
| IIEES SC | GHVR | Z | EPn | E | 2024-10-16 13:04:33 | -0.1 | y | 0 | 419 | 233 | ||
| IIEES SC | KAGH | Z | EPn | E | 2024-10-16 13:04:37 | 0.1 | y | 0 | 449 | 88 | ||
| IIEES SC | GIDE | Z | EPn | E | 2024-10-16 13:04:37 | -0.5 | y | 0 | 455 | 272 | ||
| IIEES SC | NASN | Z | EPn | E | 2024-10-16 13:04:40 | -0.3 | y | 0 | 481 | 204 | ||
| IIEES SC | YZKH | Z | EPn | E | 2024-10-16 13:04:18 | -23.2 | n | 4 | 486 | 184 | ||
| IIEES SC | QABG | Z | EPn | E | 2024-10-16 13:04:43 | 0.9 | y | 0 | 495 | 256 | ||
| IIEES SC | JRKH | Z | EPn | E | 2024-10-16 13:04:43 | 0.3 | y | 0 | 496 | 101 | ||
| IIEES SC | TBJM | Z | EPn | E | 2024-10-16 13:04:45 | 0.1 | y | 0 | 514 | 109 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2024-10-16 13:04:31 | -19.1 | n | 4 | 558 | 269 | ||
| IIEES SC | TAFT | Z | EPn | E | 2024-10-16 13:04:51 | 0 | y | 0 | 564 | 187 | ||
| IIEES SC | MEH | Z | EPn | E | 2024-10-16 13:04:55 | 0.4 | y | 0 | 597 | 183 | ||
| IIEES SC | SHRT | Z | EPn | E | 2024-10-16 13:04:54 | -0.5 | y | 0 | 598 | 125 | ||
| IIEES SC | BSRN | Z | EPn | E | 2024-10-16 13:05:02 | -0.5 | y | 0 | 658 | 144 | ||
| IIEES SC | GRMI | Z | EPn | E | 2024-10-16 13:04:41 | -21.4 | n | 4 | 660 | 290 | ||
| IIEES SC | KLNJ | Z | EPn | E | 2024-10-16 13:05:10 | 1.2 | y | 0 | 709 | 206 | ||
| IIEES SC | GHIR | Z | EPn | E | 2024-10-16 13:05:40 | 0.1 | y | 0 | 958 | 191 | ||
