Magnitude |
:3.5 |
| Date & Time (UTC) | 2024-10-20 18:20:50.4 |
| Date & Time (Local) | 1403/7/29 21:50:50.4 |

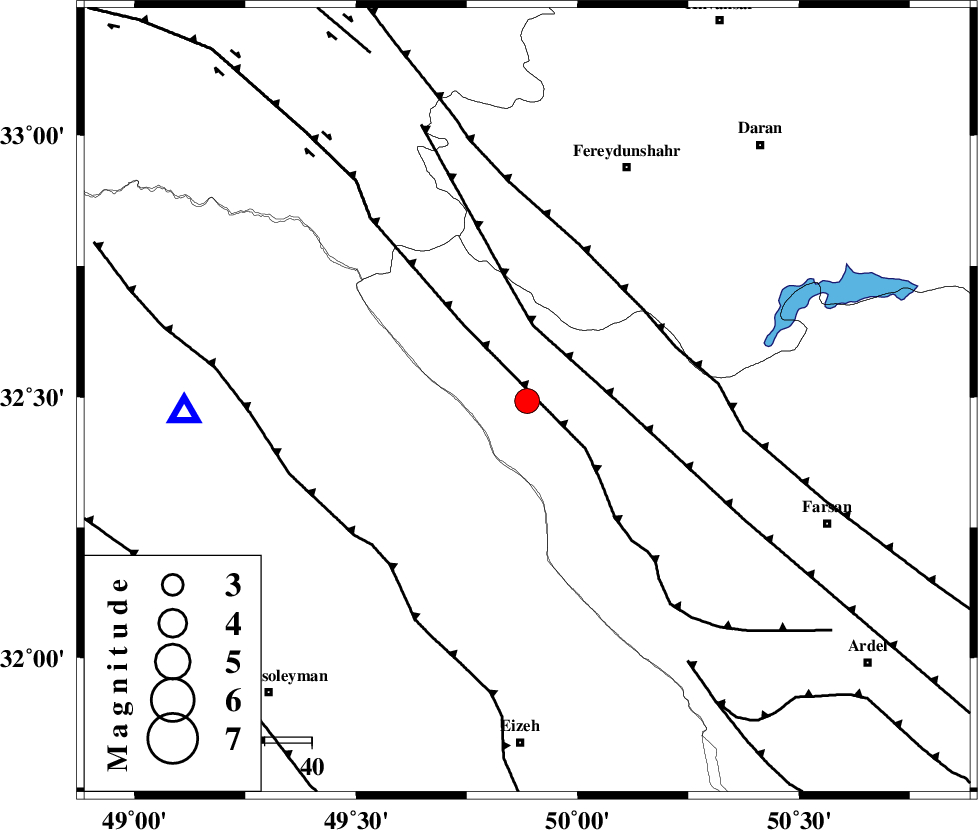

| Location | Lat:32.492 Lon: 49.886 |
| Region | Chaharmahal Bakhtiari Province, 22 km -West of Chelgard |
Nearest Cities |
|
| 22 km North West of Chelgard, Chaharmahal Bakhtiari Province | |
| 23 km South of Durak, Chaharmahal Bakhtiari Province | |
| 38 km North East of Paabshalal, Khoozestan Province | |
| 38 km West of Kukanak, Esfahan Province | |
| 40 km South of Masir, Esfahan Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| ZARDKUH_F (Length: 139 km) , Distance to epicenter: 16 km | |
| ARDAL_F (Length: 170 km) , Distance to epicenter: 16 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 31 km | |
| Number of Phases | 17 |
| RMS | 0.4 |
| Number of Stations | 17 |
| Error in Latitude | >1.6 km |
| Error in Longitude | 1.6 km |
| Error in Depth | 457.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 195444 | IIEES SC | ASAO | Z | 0.6 | 1 | 2024-10-20 18:21:26 | 2024-10-21 05:31:00 | n |
| 195445 | IIEES SC | KLNJ | Z | 0.6 | 1 | 2024-10-20 18:21:27 | 2024-10-21 05:31:00 | n |
| 195446 | IIEES SC | GHVR | Z | 0.7 | 1 | 2024-10-20 18:21:30 | 2024-10-21 05:31:00 | n |
| 195447 | IIEES SC | NASN | Z | 0.2 | 1 | 2024-10-20 18:21:32 | 2024-10-21 05:31:00 | n |
| 195448 | IIEES SC | KCHF | Z | 0.2 | 1 | 2024-10-20 18:21:39 | 2024-10-21 05:31:00 | n |
| 195449 | IIEES SC | ANAR | Z | 0.06 | 1 | 2024-10-20 18:21:43 | 2024-10-21 05:31:00 | n |
| 195450 | IIEES SC | CHTH | Z | 0.1 | 1 | 2024-10-20 18:21:48 | 2024-10-21 05:31:00 | n |
| 195451 | IIEES SC | DAMV | Z | 0.2 | 1 | 2024-10-20 18:21:47 | 2024-10-21 05:31:00 | n |
| 195452 | IIEES SC | DHR | Z | 0.1 | 1 | 2024-10-20 18:21:48 | 2024-10-21 05:31:00 | n |
| 195453 | IIEES SC | TAFT | Z | 0.04 | 1 | 2024-10-20 18:21:50 | 2024-10-21 05:31:00 | n |
| 195454 | IIEES SC | YZKH | Z | 0.06 | 1 | 2024-10-20 18:21:53 | 2024-10-21 05:31:00 | n |
| 195455 | IIEES SC | GLO | Z | 0.2 | 1 | 2024-10-20 18:22:10 | 2024-10-21 05:31:00 | n |
| 195456 | IIEES SC | SRSL | Z | 0.07 | 1 | 2024-10-20 18:22:10 | 2024-10-21 05:31:00 | n |
| 195457 | IIEES SC | TABS | Z | 0.01 | 1 | 2024-10-20 18:22:22 | 2024-10-21 05:31:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | ASAO | Z | EPn | E | 2024-10-20 18:21:26 | -0.6 | y | 0 | 228 | 3 | ||
| IIEES SC | KLNJ | Z | EPn | E | 2024-10-20 18:21:27 | 0 | y | 0 | 231 | 135 | ||
| IIEES SC | GHVR | Z | EPn | E | 2024-10-20 18:21:30 | 0.5 | y | 0 | 254 | 30 | ||
| IIEES SC | NASN | Z | EPn | E | 2024-10-20 18:21:32 | -0.6 | y | 0 | 276 | 83 | ||
| IIEES SC | KCHF | Z | EPn | E | 2024-10-20 18:21:39 | 0.3 | y | 0 | 330 | 307 | ||
| IIEES SC | ANAR | Z | EPn | E | 2024-10-20 18:21:43 | -0.2 | y | 0 | 368 | 78 | ||
| IIEES SC | CHTH | Z | EPn | E | 2024-10-20 18:21:48 | 0.3 | y | 0 | 396 | 17 | ||
| IIEES SC | DAMV | Z | EPn | E | 2024-10-20 18:21:47 | -0.5 | y | 0 | 398 | 29 | ||
| IIEES SC | DHR | Z | EPn | E | 2024-10-20 18:21:48 | -0.3 | y | 0 | 407 | 307 | ||
| IIEES SC | TAFT | Z | EPn | E | 2024-10-20 18:21:50 | 0.7 | y | 0 | 413 | 102 | ||
| IIEES SC | YZKH | Z | EPn | E | 2024-10-20 18:21:53 | 0.1 | y | 0 | 443 | 91 | ||
| IIEES SC | MEH | Z | EPn | E | 2024-10-20 18:21:56 | 0.6 | y | 0 | 463 | 105 | ||
| IIEES SC | GHIR | Z | EPn | E | 2024-10-20 18:22:07 | -0.1 | y | 0 | 553 | 147 | ||
| IIEES SC | GLO | Z | EPn | E | 2024-10-20 18:22:10 | 0.7 | y | 0 | 574 | 39 | ||
| IIEES SC | SRSL | Z | EPn | E | 2024-10-20 18:22:10 | 0 | y | 0 | 582 | 315 | ||
| IIEES SC | SHRO | Z | EPn | E | 2024-10-20 18:22:19 | -4 | n | 4 | 686 | 55 | ||
| IIEES SC | TABS | Z | EPn | E | 2024-10-20 18:22:22 | -1.1 | y | 0 | 688 | 79 | ||
