Magnitude |
:4 |
| Date & Time (UTC) | 2024-11-09 05:21:25.1 |
| Date & Time (Local) | 1403/8/19 08:51:25.1 |

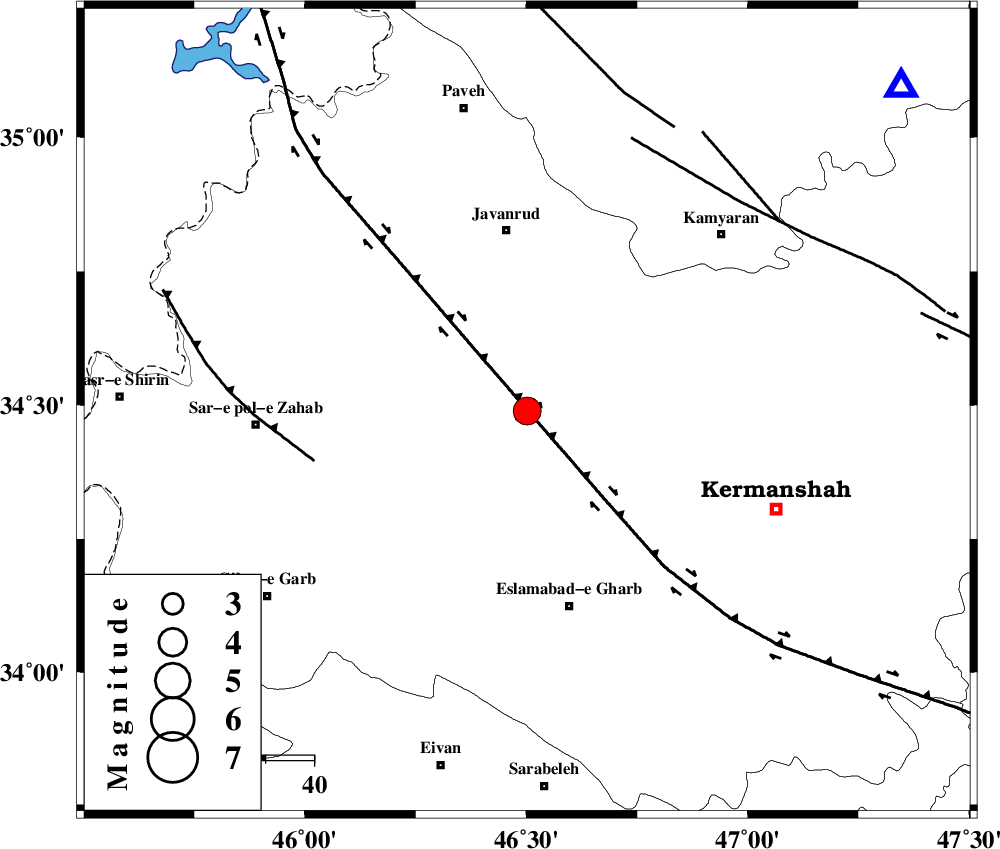

| Location | Lat:34.489 Lon: 46.502 |
| Region | Kermanshah Province, 38 km South of Javanrud |
Nearest Cities |
|
| 9 km of Kuzran, Kermanshah Province | |
| 15 km North of Gahvareh, Kermanshah Province | |
| 17 km East of Zavleh olia, Kermanshah Province | |
| 22 km South of Dolatabad, Kermanshah Province | |
| 24 km South West of Hasanabad, Kermanshah Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 13 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 45 km | |
| SARTAKHT_F (Length: 78 km) , Distance to epicenter: 61 km | |
| Number of Phases | 15 |
| RMS | 0.7 |
| Number of Stations | 15 |
| Error in Latitude | >4.6 km |
| Error in Longitude | 4.6 km |
| Error in Depth | 2.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 195686 | IIEES SC | DHR | Z | 40 | 1 | 2024-11-09 05:21:29 | 2024-11-09 09:17:00 | n |
| 195687 | IIEES SC | SRSL | Z | 5 | 1 | 2024-11-09 05:21:59 | 2024-11-09 09:17:00 | n |
| 195688 | IIEES SC | ASAO | Z | 0.5 | 1 | 2024-11-09 05:22:14 | 2024-11-09 09:17:00 | n |
| 195689 | IIEES SC | GHVR | Z | 0.5 | 1 | 2024-11-09 05:22:26 | 2024-11-09 09:17:00 | n |
| 195690 | IIEES SC | GURO | Z | 0.5 | 1 | 2024-11-09 05:22:48 | 2024-11-09 09:17:00 | n |
| 195691 | IIEES SC | NASN | Z | 0.05 | 1 | 2024-11-09 05:22:49 | 2024-11-09 09:17:00 | n |
| 195692 | IIEES SC | ANAR | Z | 0.03 | 1 | 2024-11-09 05:22:58 | 2024-11-09 09:17:00 | n |
| 195693 | IIEES SC | GLO | Z | 0.2 | 1 | 2024-11-09 05:23:00 | 2024-11-09 09:17:00 | n |
| 195694 | IIEES SC | ABGH | Z | 0.01 | 1 | 2024-11-09 05:23:12 | 2024-11-09 09:17:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | DHR | Z | EPg | E | 2024-11-09 05:21:29 | -1 | y | 0 | 26 | 336 | ||
| IIEES SC | KCHF | Z | EPg | E | 2024-11-09 05:21:34 | -0.8 | y | 0 | 55 | 116 | ||
| IIEES SC | SRSL | Z | EPn | E | 2024-11-09 05:21:59 | -0.6 | y | 0 | 214 | 333 | ||
| IIEES SC | QABG | Z | EPn | E | 2024-11-09 05:22:12 | 0 | y | 0 | 312 | 64 | ||
| IIEES SC | ASAO | Z | EPn | E | 2024-11-09 05:22:14 | 0.7 | y | 0 | 324 | 89 | ||
| IIEES SC | AZR | Z | EPn | E | 2024-11-09 05:22:18 | 0.9 | y | 0 | 357 | 352 | ||
| IIEES SC | GIDE | Z | EPn | E | 2024-11-09 05:22:34 | 11.1 | n | 4 | 404 | 48 | ||
| IIEES SC | GHVR | Z | EPn | E | 2024-11-09 05:22:26 | -0.6 | y | 0 | 436 | 90 | ||
| IIEES SC | MRD | Z | EPn | E | 2024-11-09 05:22:35 | 3 | n | 4 | 474 | 351 | ||
| IIEES SC | GRMI | Z | EPn | E | 2024-11-09 05:22:18 | -15.9 | n | 4 | 495 | 15 | ||
| IIEES SC | GURO | Z | EPn | E | 2024-11-09 05:22:48 | 0.2 | y | 0 | 603 | 318 | ||
| IIEES SC | NASN | Z | EPn | E | 2024-11-09 05:22:49 | 0.1 | y | 0 | 614 | 108 | ||
| IIEES SC | ANAR | Z | EPn | E | 2024-11-09 05:22:58 | 0.7 | y | 0 | 684 | 102 | ||
| IIEES SC | GLO | Z | EPn | E | 2024-11-09 05:23:00 | 0.2 | y | 0 | 702 | 71 | ||
| IIEES SC | ABGH | Z | EPn | E | 2024-11-09 05:23:12 | 0.9 | y | 0 | 792 | 72 | ||
