Magnitude |
:3.9 |
| Date & Time (UTC) | 2024-11-14 21:08:23.2 |
| Date & Time (Local) | 1403/8/25 00:38:23.2 |

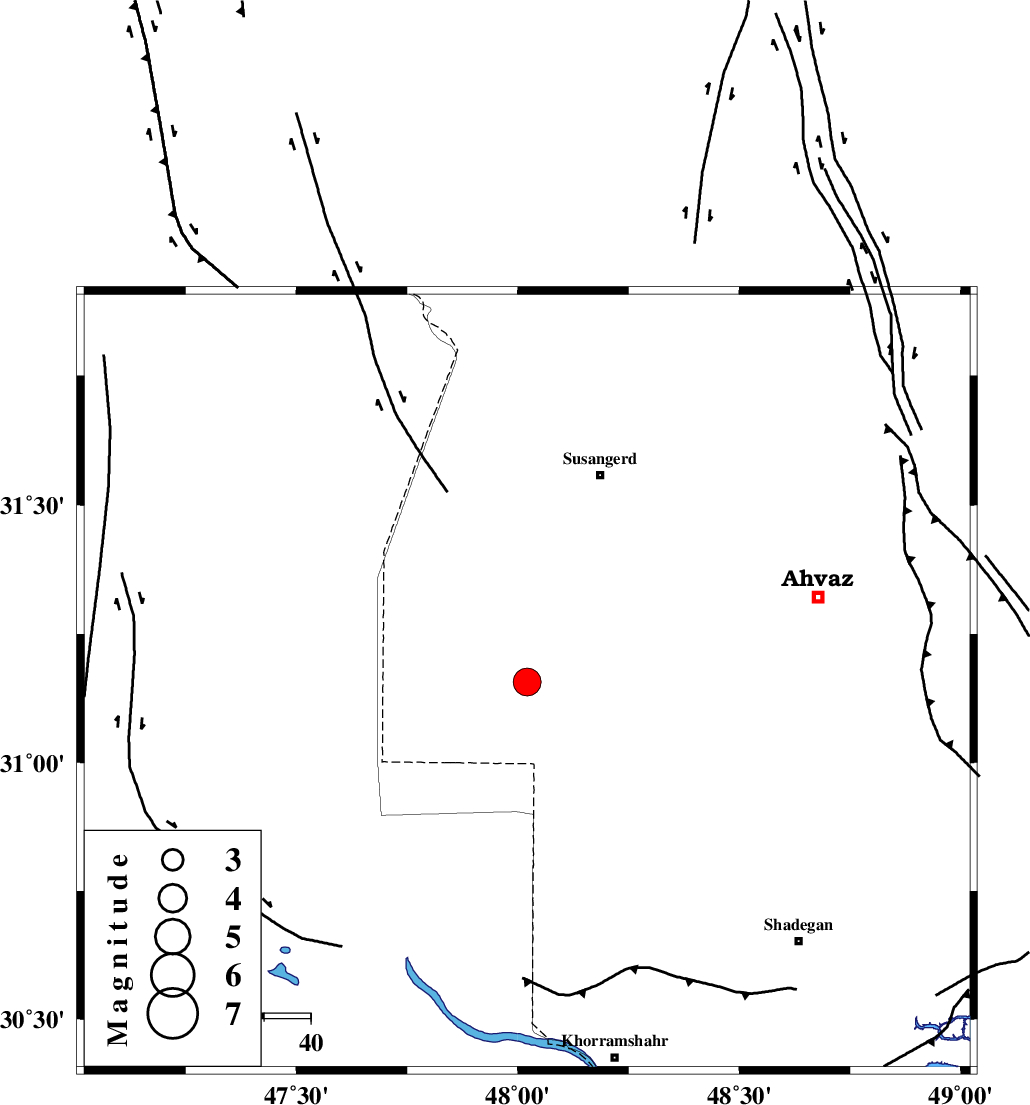

| Location | Lat:31.157 Lon: 48.021 |
| Region | Khoozestan Province, 47 km South-West of Susangerd |
Nearest Cities |
|
| 34 km South of Hoveizeh, Khoozestan Province | |
| 47 km South West of Susangerd, Khoozestan Province | |
| 48 km South West of Jalaliyeh, Khoozestan Province | |
| 50 km West of Bahr, Khoozestan Province | |
| 53 km South West of Hamidiyeh, Khoozestan Province | |
| Depth | 16 km |
| Agency | |
Faults within 150 km: |
|
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 56 km | |
| AGHAJARI_F (Length: 88 km) , Distance to epicenter: 116 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 143 km | |
| Number of Phases | 13 |
| RMS | 0.5 |
| Number of Stations | 13 |
| Error in Latitude | >4.5 km |
| Error in Longitude | 4.5 km |
| Error in Depth | 5.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 195807 | IIEES SC | KCHF | Z | 0.3 | 1 | 2024-11-14 21:09:16 | 2024-11-16 07:43:00 | n |
| 195808 | IIEES SC | ASAO | Z | 0.4 | 1 | 2024-11-14 21:09:23 | 2024-11-16 07:43:00 | n |
| 195809 | IIEES SC | DHR | Z | 0.2 | 1 | 2024-11-14 21:09:22 | 2024-11-16 07:43:00 | n |
| 195810 | IIEES SC | GHVR | Z | 0.4 | 1 | 2024-11-14 21:09:30 | 2024-11-16 07:43:00 | n |
| 195811 | IIEES SC | NASN | Z | 0.3 | 1 | 2024-11-14 21:09:31 | 2024-11-16 07:43:00 | n |
| 195812 | IIEES SC | GHIR | Z | 0.07 | 1 | 2024-11-14 21:09:41 | 2024-11-16 07:43:00 | n |
| 195813 | IIEES SC | ANAR | Z | 0.07 | 1 | 2024-11-14 21:09:42 | 2024-11-16 07:43:00 | n |
| 195814 | IIEES SC | GIDE | Z | 0.02 | 1 | 2024-11-14 21:09:52 | 2024-11-16 07:43:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | AHWZ | Z | EPg | E | 2024-11-14 21:08:34 | 0.2 | y | 0 | 62 | 72 | ||
| IIEES SC | KLNJ | Z | EPn | E | 2024-11-14 21:09:13 | 0.4 | y | 0 | 341 | 93 | ||
| IIEES SC | KCHF | Z | EPn | E | 2024-11-14 21:09:16 | 0.7 | y | 0 | 358 | 345 | ||
| IIEES SC | ASAO | Z | EPn | E | 2024-11-14 21:09:23 | 0.3 | y | 0 | 420 | 27 | ||
| IIEES SC | DHR | Z | EPn | E | 2024-11-14 21:09:22 | -0.7 | y | 0 | 422 | 339 | ||
| IIEES SC | GHVR | Z | EPn | E | 2024-11-14 21:09:30 | 0.6 | y | 0 | 476 | 39 | ||
| IIEES SC | NASN | Z | EPn | E | 2024-11-14 21:09:31 | 0 | y | 0 | 488 | 68 | ||
| IIEES SC | QABG | Z | EPn | E | 2024-11-14 21:09:36 | 0.5 | y | 0 | 525 | 16 | ||
| IIEES SC | GHIR | Z | EPn | E | 2024-11-14 21:09:41 | -0.4 | y | 0 | 576 | 124 | ||
| IIEES SC | ANAR | Z | EPn | E | 2024-11-14 21:09:42 | -1 | y | 0 | 584 | 67 | ||
| IIEES SC | DAMV | Z | EPn | E | 2024-11-14 21:09:23 | -23.8 | n | 4 | 618 | 37 | ||
| IIEES SC | GIDE | Z | EPn | E | 2024-11-14 21:09:52 | -0.6 | y | 0 | 661 | 15 | ||
| IIEES SC | GLO | Z | EPn | E | 2024-11-14 21:10:10 | -0.3 | y | 0 | 800 | 42 | ||
