Magnitude |
:3.7 |
| Date & Time (UTC) | 2024-11-28 21:59:51.6 |
| Date & Time (Local) | 1403/9/9 01:29:51.6 |

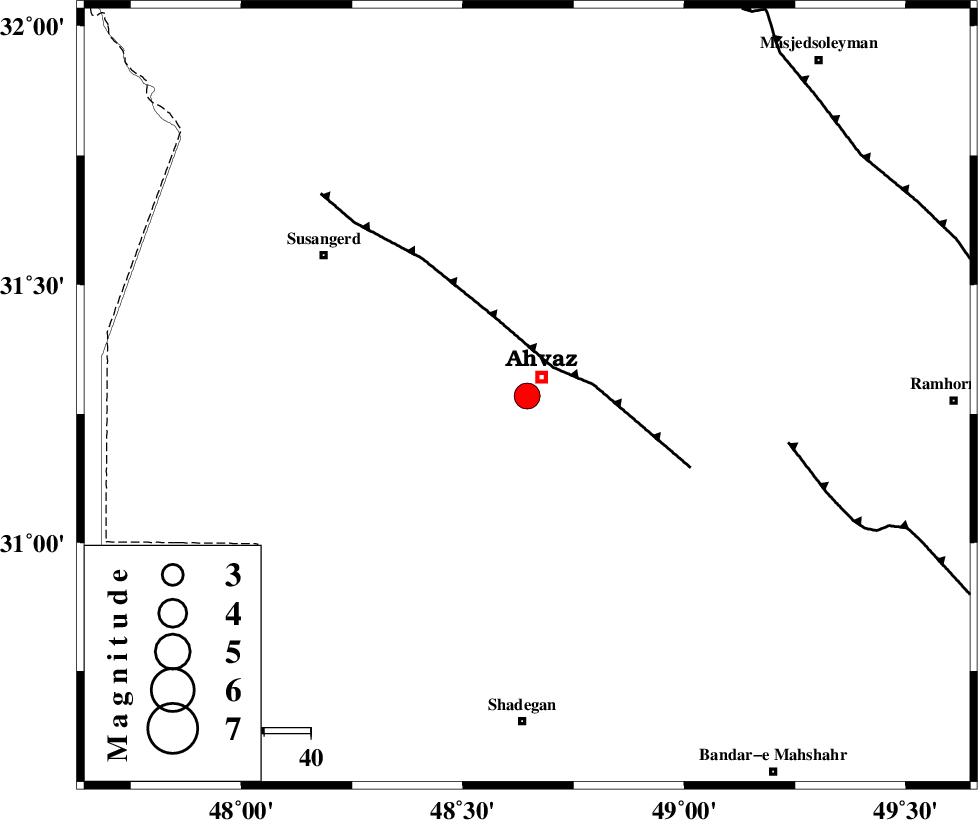

| Location | Lat:31.284 Lon: 48.645 |
| Region | Khoozestan Province, 5 km of Ahvaz |
Nearest Cities |
|
| 5 km of Ahvaz, Khoozestan Province | |
| 15 km North of Bahr, Khoozestan Province | |
| 17 km North of Abunangeh, Khoozestan Province | |
| 26 km South East of Dehkade, Khoozestan Province | |
| 30 km South East of Hamidiyeh, Khoozestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 8 km | |
| AGHAJARI_F (Length: 88 km) , Distance to epicenter: 57 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 88 km | |
| Number of Phases | 18 |
| RMS | 0.2 |
| Number of Stations | 18 |
| Error in Latitude | >2.3 km |
| Error in Longitude | 2.3 km |
| Error in Depth | 1.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 196044 | IIEES SC | KLNJ | Z | 0.5 | 1 | 2024-11-28 22:00:34 | 2024-11-30 07:57:00 | n |
| 196045 | IIEES SC | ASAO | Z | 0.2 | 1 | 2024-11-28 22:00:47 | 2024-11-30 07:57:00 | n |
| 196046 | IIEES SC | NASN | Z | 0.09 | 1 | 2024-11-28 22:00:52 | 2024-11-30 07:57:00 | n |
| 196047 | IIEES SC | GHVR | Z | 0.2 | 1 | 2024-11-28 22:00:52 | 2024-11-30 07:57:00 | n |
| 196048 | IIEES SC | SRSL | Z | 0.1 | 1 | 2024-11-28 22:01:16 | 2024-11-30 07:57:00 | n |
| 196049 | IIEES SC | KRBR | Z | 0.03 | 1 | 2024-11-28 22:01:37 | 2024-11-30 07:57:00 | n |
| 196050 | IIEES SC | TABS | Z | 0.008 | 1 | 2024-11-28 22:01:43 | 2024-11-30 07:57:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | AHWZ | Z | EPg | E | 2024-11-28 21:59:54 | 0 | y | 0 | 5 | 358 | ||
| IIEES SC | BSR2 | Z | EPg | E | 2024-11-28 22:00:20 | 4.5 | n | 4 | 147 | 222 | ||
| IIEES SC | KLNJ | Z | EPn | E | 2024-11-28 22:00:34 | 0.1 | y | 0 | 283 | 96 | ||
| IIEES SC | KCHF | Z | EPn | E | 2024-11-28 22:00:45 | 0.4 | y | 0 | 364 | 336 | ||
| IIEES SC | ASAO | Z | EPn | E | 2024-11-28 22:00:47 | 0.4 | y | 0 | 384 | 20 | ||
| IIEES SC | NASN | Z | EPn | E | 2024-11-28 22:00:52 | 0.1 | y | 0 | 428 | 67 | ||
| IIEES SC | GHVR | Z | EPn | E | 2024-11-28 22:00:52 | 0.3 | y | 0 | 430 | 34 | ||
| IIEES SC | DHR | Z | EPn | E | 2024-11-28 22:00:53 | 0 | y | 0 | 434 | 331 | ||
| IIEES SC | ANAR | Z | EPn | E | 2024-11-28 22:01:04 | -0.3 | y | 0 | 524 | 66 | ||
| IIEES SC | DAMV | Z | EPn | E | 2024-11-28 22:00:52 | -18.2 | n | 4 | 573 | 33 | ||
| IIEES SC | YZKH | Z | EPn | E | 2024-11-28 22:00:52 | -18.8 | n | 4 | 576 | 78 | ||
| IIEES SC | SRSL | Z | EPn | E | 2024-11-28 22:01:16 | -0.4 | y | 0 | 622 | 331 | ||
| IIEES SC | GIDE | Z | EPn | E | 2024-11-28 22:01:18 | -0.1 | y | 0 | 635 | 10 | ||
| IIEES SC | MAHB | Z | EPn | E | 2024-11-28 22:01:21 | -0.2 | y | 0 | 666 | 336 | ||
| IIEES SC | AZR | Z | EPn | E | 2024-11-28 22:01:32 | -0.2 | y | 0 | 750 | 341 | ||
| IIEES SC | KRBR | Z | EPn | E | 2024-11-28 22:01:37 | 0.1 | y | 0 | 791 | 101 | ||
| IIEES SC | TABS | Z | EPn | E | 2024-11-28 22:01:43 | -0.5 | y | 0 | 839 | 72 | ||
| IIEES SC | SHRO | Z | EPn | E | 2024-11-28 22:01:39 | -7.2 | n | 4 | 861 | 53 | ||
