مشخصات زلزله

 Map Region : lat:FROMLAT-TOLAT  lon:FROMLON-TOLON

  North
West   East
  South
Show Cities
Show Foreign Cities
Show Fault Mechanism
Show Province Boundaries
Show Stations
Map Title

Magnitude
:3.2
Date & Time (UTC) 2024-12-20 13:38:55.7
Date & Time (Local) 1403/9/30  17:08:55.7

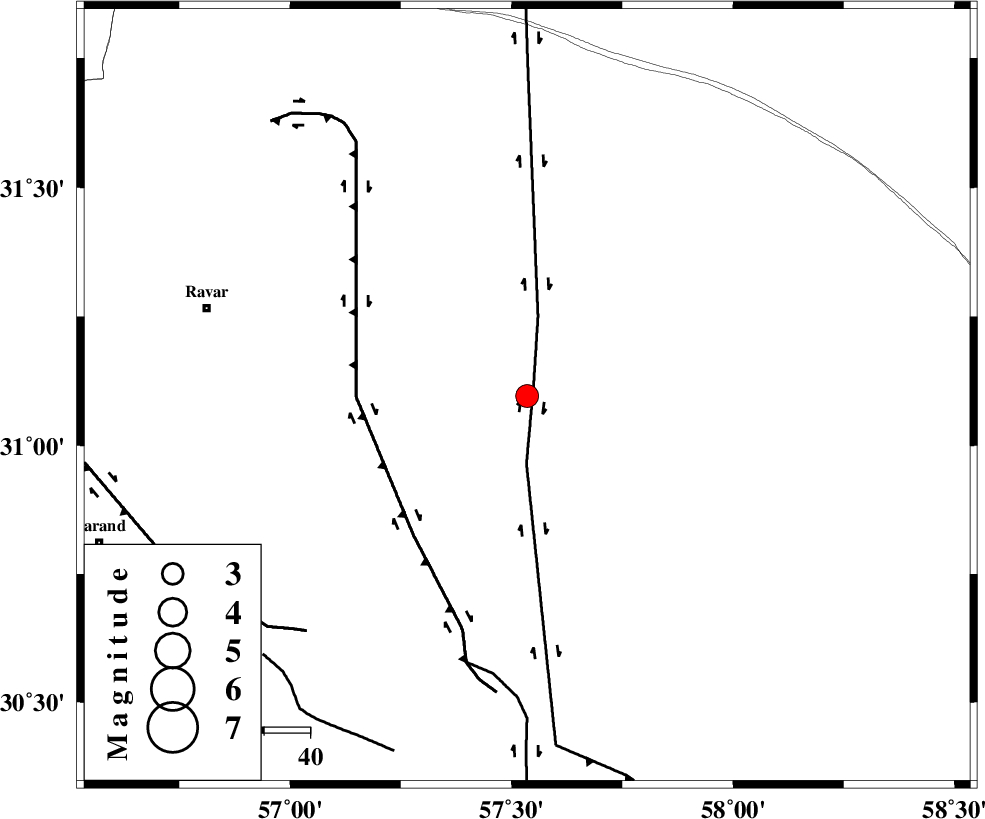

Location Lat:31.096 Lon: 57.535
Region Kerman Province, 71 km South-East of Ravar
Nearest Cities
62 km North East of Harjand, Kerman Province
65 km North East of Hejdak, Kerman Province
70 km North East of Dehlulu, Kerman Province
71 km South East of Ravar, Kerman Province
75 km South East of Dehali, Kerman Province
Depth 12 km
Agency
Faults within 150 km:
NAYBAND_F (Length: 258 km) , Distance to epicenter: 2 km
LAKARKUH_F (Length: 138 km) , Distance to epicenter: 37 km
GOLBAF_SIRCH_F (Length: 114 km) , Distance to epicenter: 59 km
Number of Phases 11
RMS 0.3
Number of Stations 11
Error in Latitude >2.5 km
Error in Longitude 2.5 km
Error in Depth 423 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
196363IIEES SCYZKHZ 0.212024-12-20 13:39:412024-12-21 08:55:00n
196364IIEES SCANARZ 0.0512024-12-20 13:39:572024-12-21 08:55:00n
196365IIEES SCNASNZ 0.0312024-12-20 13:40:042024-12-21 08:55:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCBSRNZ EPg E2024-12-20 13:39:13-11.8n417957
IIEES SCKBAMZ EPn E2024-12-20 13:39:320y0235158
IIEES SCMEHZ EPn E2024-12-20 13:39:390.4y0280277
IIEES SCTABSZ EPn E2024-12-20 13:39:390y0286352
IIEES SCYZKHZ EPn E2024-12-20 13:39:41-0.9y0314297
IIEES SCTAFTZ EPn E2024-12-20 13:39:44-0.3y0327282
IIEES SCSHRTZ EPn E2024-12-20 13:39:598.5n438443
IIEES SCANARZ EPn E2024-12-20 13:39:571y0428303
IIEES SCNASNZ EPn E2024-12-20 13:40:040.3y0485293
IIEES SCSBZVZ EPn E2024-12-20 13:40:248n45871
IIEES SCJRKHZ EPn E2024-12-20 13:40:181n459426
