Magnitude |
:3.4 |
| Date & Time (UTC) | 2014-05-07 15:04:21.0 |
| Date & Time (Local) | 1393/2/17 19:34:21.0 |

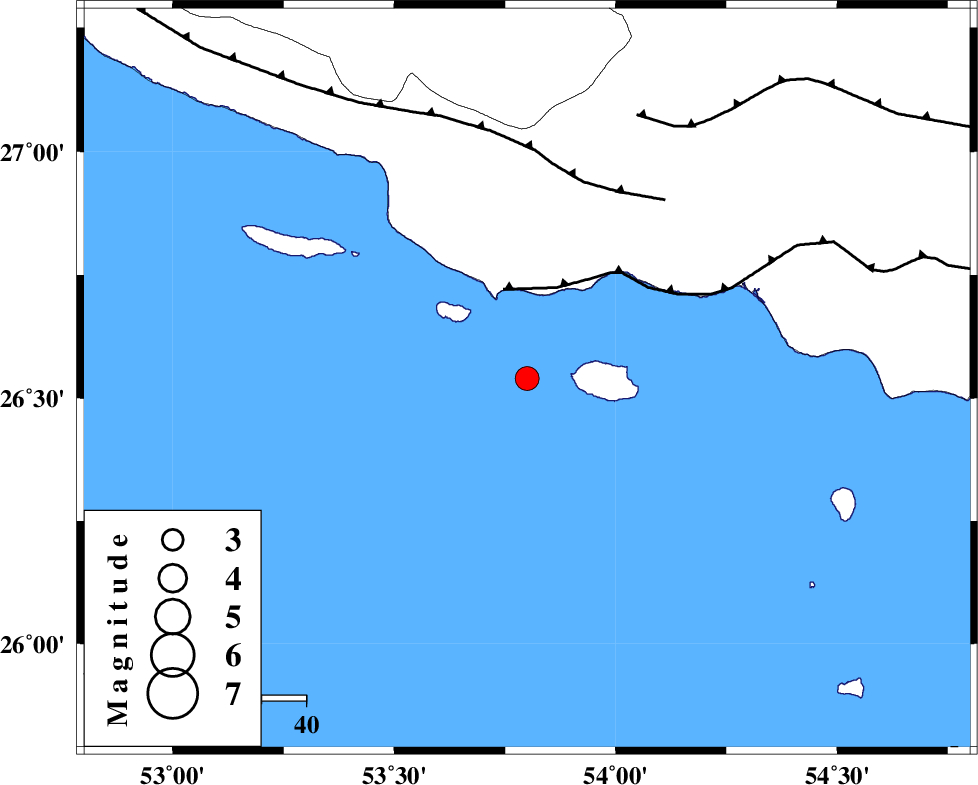

| Location | Lat:26.54 Lon: 53.8 |
| Region | Persian Gulf |
Nearest Cities |
|
| 70 km South of Ahl, Fars Province | |
| 71 km South West of Jenah, Hormozgan Province | |
| 78 km South East of Ashkenan, Fars Province | |
| 92 km South West of Bastak, Hormozgan Province | |
| 102 km South East of Beyram, Fars Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| ZFF1 (Length: 165 km) , Distance to epicenter: 21 km | |
| MFF3 (Length: 292 km) , Distance to epicenter: 46 km | |
| MFF1 (Length: 180 km) , Distance to epicenter: 64 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >4.4 km |
| Error in Longitude | 3.2 km |
| Error in Depth | 4.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 92354 | IIEES | BNDS | N | 166.3 | 0.32 | 2014-05-07 15:05:39 | 2014-05-07 05:03:00 | n |
| 92355 | IIEES | BNDS | E | 228.9 | 0.4 | 2014-05-07 15:05:49 | 2014-05-07 05:03:00 | n |
| 92356 | IIEES | KRBR | N | 38.1 | 0.44 | 2014-05-07 15:06:29 | 2014-05-07 05:03:00 | n |
| 92357 | IIEES | KRBR | E | 38.7 | 0.36 | 2014-05-07 15:06:36 | 2014-05-07 05:03:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pn | E | 2014-05-07 15:05:00 | 0.05 | y | 254 | 68 | |||
| IIEES | BNDS | E | Sg | E | 2014-05-07 15:05:32 | -0.02 | y | 254 | 68 | |||
| IIEES | KRBR | Z | Pn | E | 2014-05-07 15:05:28 | -0.11 | y | 479 | 37 | |||
| IIEES | KRBR | E | S | E | 2014-05-07 15:06:17 | 0.05 | y | 479 | 37 | |||
| IIEES | YZKH | Z | Pn | E | 2014-05-07 15:05:50 | 0.01 | y | 653 | 7 | |||
| IIEES | BSRN | Z | Pn | E | 2014-05-07 15:06:07 | 0.03 | y | 793 | 39 | |||
