Magnitude |
:5 |
| Date & Time (UTC) | 2014-06-20 22:54:20.6 |
| Date & Time (Local) | 1393/3/31 03:24:20.6 |

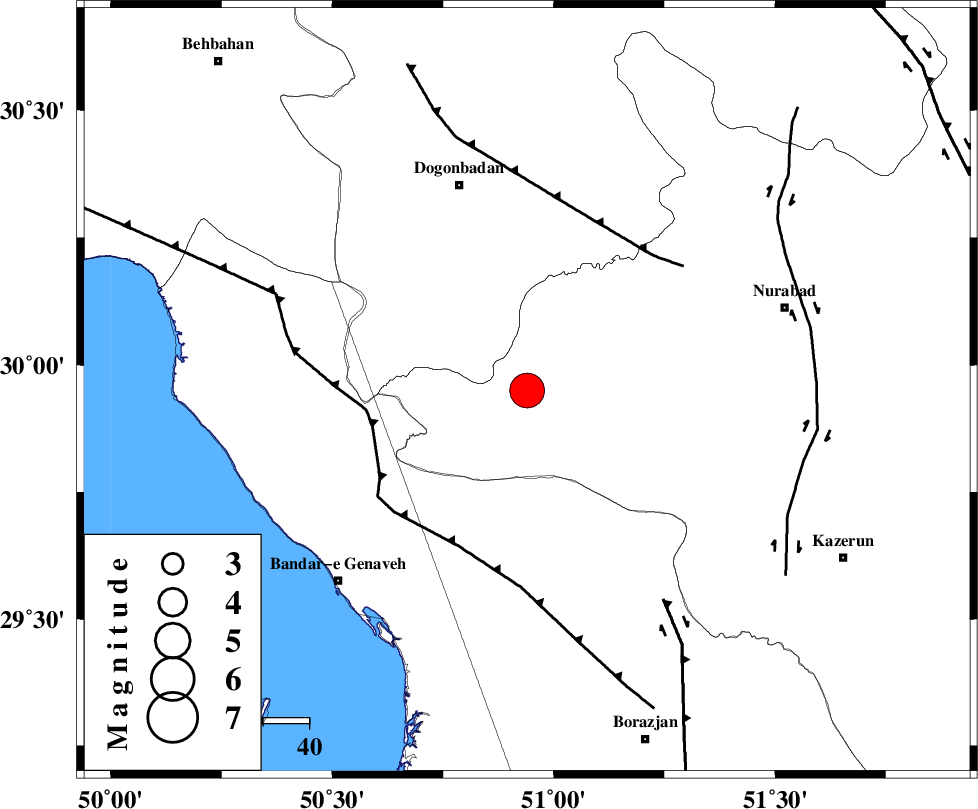

| Location | Lat:29.95 Lon: 50.94 |
| Region | Fars Province, 47 km South-East of Dogonbadan |
Nearest Cities |
|
| 28 km South West of Babamonir, Fars Province | |
| 46 km North East of Mohammad salehi, Bushehr Province | |
| 47 km South East of Dogonbadan, Kohkiluieh va boyerahmad Province | |
| 47 km North East of Chehar rustaee, Bushehr Province | |
| 50 km South West of Basht, Kohkiluieh va boyerahmad Province | |
| Depth | 6 km |
| Agency | |
Faults within 150 km: |
|
| ZFF3 (Length: 125 km) , Distance to epicenter: 35 km | |
| MISHAN_F (Length: 76 km) , Distance to epicenter: 40 km | |
| BORAZJAN_F (Length: 168 km) , Distance to epicenter: 54 km | |
| Number of Phases | 11 |
| RMS | 0.4 |
| Number of Stations | 8 |
| Error in Latitude | >4.9 km |
| Error in Longitude | 4.2 km |
| Error in Depth | 8.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 92654 | IIEES | SHGR | N | 4881.9 | 0.48 | 2014-06-20 22:56:06 | 2014-06-21 12:24:00 | n |
| 92655 | IIEES | SHGR | E | 5226 | 0.68 | 2014-06-20 22:56:13 | 2014-06-21 12:24:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pg | E | 2014-06-20 22:54:44 | 0.29 | y | 125 | 164 | |||
| IIEES | AHRM | Z | Sg | E | 2014-06-20 22:55:00 | -0.11 | y | 125 | 164 | |||
| IIEES | SHGR | Z | Pn | E | 2014-06-20 22:55:07 | -0.7 | y | 315 | 320 | |||
| IIEES | SHGR | N | Sn | 2014-06-20 22:55:43 | 0.18 | y | 315 | 320 | ||||
| IIEES | KHMZ | Z | Pn | E | 2014-06-20 22:55:23 | 0.21 | y | 430 | 348 | |||
| IIEES | YZKH | Z | Pn | E | 2014-06-20 22:55:24 | -0.19 | y | 441 | 51 | |||
| IIEES | YZKH | N | Sn | 2014-06-20 22:56:10 | 0.11 | y | 441 | 51 | ||||
| IIEES | GHVR | Z | Pn | E | 2014-06-20 22:55:32 | 0.58 | y | 503 | 3 | |||
| IIEES | ASAO | Z | Pn | E | 2014-06-20 22:55:33 | 0.22 | y | 517 | 351 | |||
| IIEES | TABS | Z | Pn | E | 2014-06-20 22:55:57 | -0.41 | y | 714 | 53 | |||
| IIEES | SHRO | Z | Pn | E | 2014-06-20 22:56:10 | -0.48 | y | 822 | 34 | |||
