Magnitude |
:4.3 |
| Date & Time (UTC) | 2014-10-15 13:45:24.1 |
| Date & Time (Local) | 1393/7/23 17:15:24.1 |

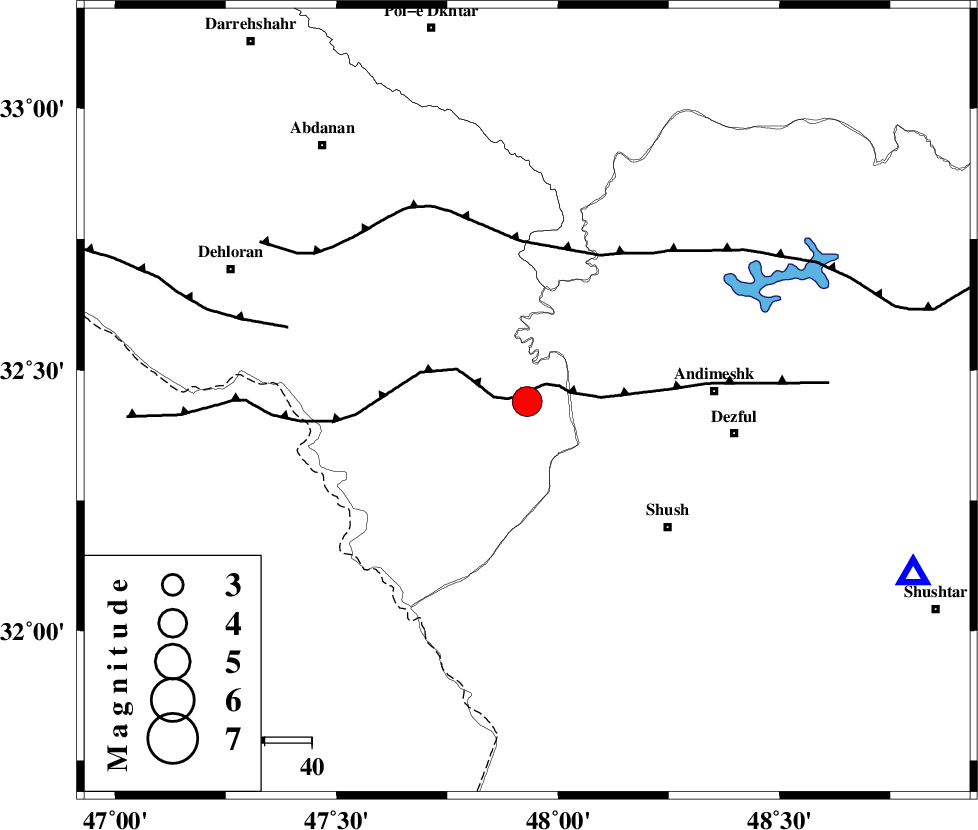

| Location | Lat:32.44 Lon: 47.93 |
| Region | Ilam Province, 40 km West of Andimeshk |
Nearest Cities |
|
| 40 km West of Andimeshk, Khoozestan Province | |
| 40 km South West of Hoseinieh, Khoozestan Province | |
| 40 km North West of Shush, Khoozestan Province | |
| 44 km North West of Amaleh teimur, Khoozestan Province | |
| 44 km North West of Dezful, Khoozestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 28 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 36 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 42 km | |
| Number of Phases | 9 |
| RMS | 0.1 |
| Number of Stations | 6 |
| Error in Latitude | >1.7 km |
| Error in Longitude | 2.6 km |
| Error in Depth | 2.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 93902 | IIEES | ASAO | N | 648.6 | 0.64 | 2014-10-15 13:46:59 | 2014-10-15 02:17:00 | n |
| 93903 | IIEES | AHRM | E | 303.6 | 0.48 | 2014-10-15 13:47:31 | 2014-10-15 02:17:00 | n |
| 93904 | IIEES | AHRM | N | 295.3 | 0.56 | 2014-10-15 13:48:16 | 2014-10-15 02:17:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pn | E | 2014-10-15 13:46:01 | 0.09 | y | 238 | 52 | |||
| IIEES | KHMZ | E | Sg | E | 2014-10-15 13:46:31 | 0.01 | y | 238 | 52 | |||
| IIEES | ASAO | Z | Pn | E | 2014-10-15 13:46:09 | 0 | y | 304 | 39 | |||
| IIEES | ASAO | N | Sg | E | 2014-10-15 13:46:49 | -0.02 | y | 304 | 39 | |||
| IIEES | GHVR | Z | Pn | E | 2014-10-15 13:46:19 | 0.06 | y | 382 | 53 | |||
| IIEES | GHVR | N | S | E | 2014-10-15 13:46:59 | -0.02 | y | 382 | 53 | |||
| IIEES | ZNJK | Z | Pn | E | 2014-10-15 13:46:30 | 0.03 | y | 474 | 8 | |||
| IIEES | CHTH | Z | Pn | E | 2014-10-15 13:46:31 | -0.16 | y | 484 | 37 | |||
| IIEES | AHRM | Z | Pn | E | 2014-10-15 13:46:35 | -0.04 | y | 511 | 140 | |||
