Magnitude |
:2.9 |
| Date & Time (UTC) | 2014-10-18 05:47:52.8 |
| Date & Time (Local) | 1393/7/26 09:17:52.8 |

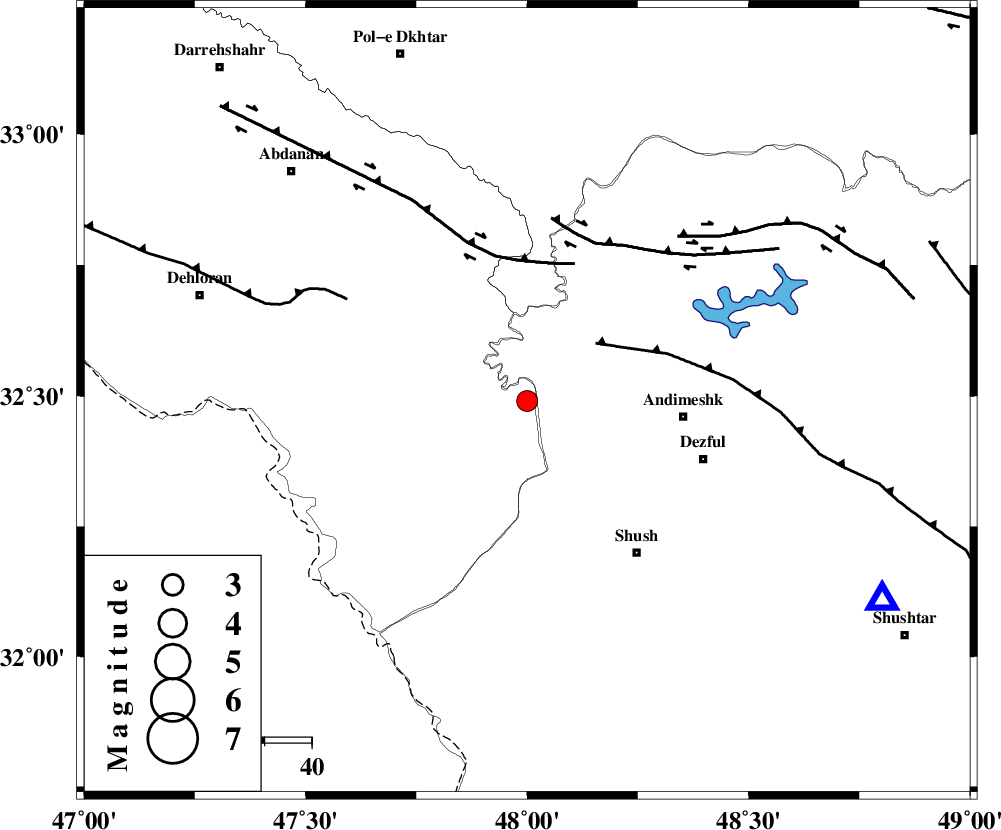

| Location | Lat:32.49 Lon: 48 |
| Region | Ilam Province, 33 km West of Andimeshk |
Nearest Cities |
|
| 31 km South West of Hoseinieh, Khoozestan Province | |
| 33 km North West of Andimeshk, Khoozestan Province | |
| 37 km South West of Bidruyeh, Khoozestan Province | |
| 39 km North West of Dezful, Khoozestan Province | |
| 40 km North West of Shush, Khoozestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 19 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 30 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 37 km | |
| Number of Phases | 7 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >6 km |
| Error in Longitude | 3.1 km |
| Error in Depth | 9.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 93979 | IIEES | SNGE | N | 44.7 | 0.73 | 2014-10-18 05:49:23 | 2014-10-19 11:25:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pn | E | 2014-10-18 05:48:29 | 0.12 | y | 230 | 52 | |||
| IIEES | KHMZ | E | Sg | E | 2014-10-18 05:48:58 | 0.03 | y | 230 | 52 | |||
| IIEES | SNGE | Z | Pn | E | 2014-10-18 05:48:37 | -0.01 | y | 295 | 348 | |||
| IIEES | SNGE | N | Sg | E | 2014-10-18 05:49:15 | 0 | y | 295 | 348 | |||
| IIEES | ASAO | Z | Pn | E | 2014-10-18 05:48:37 | -0.03 | y | 296 | 39 | |||
| IIEES | ASAO | E | Sg | E | 2014-10-18 05:49:16 | -0.04 | y | 296 | 39 | |||
| IIEES | YZKH | Z | Pn | E | 2014-10-18 05:49:17 | -0.13 | y | 620 | 89 | |||
