Magnitude |
:4.3 |
| Date & Time (UTC) | 2014-11-13 00:39:01.8 |
| Date & Time (Local) | 1393/8/22 04:09:01.8 |
| Location | Lat:26.61 Lon: 53.95 |
| Region | Persian Gulf, 90 km West of Bandar-e lengeh |
Nearest Cities |
|
| 56 km South West of Jenah, Hormozgan Province | |
| 66 km South East of Ahl, Fars Province | |
| 76 km South East of Ashkenan, Fars Province | |
| 77 km South West of Bastak, Hormozgan Province | |
| 90 km North West of Bandar-e lengeh, Hormozgan Province | |
| Depth | 14 km |
| Agency | |

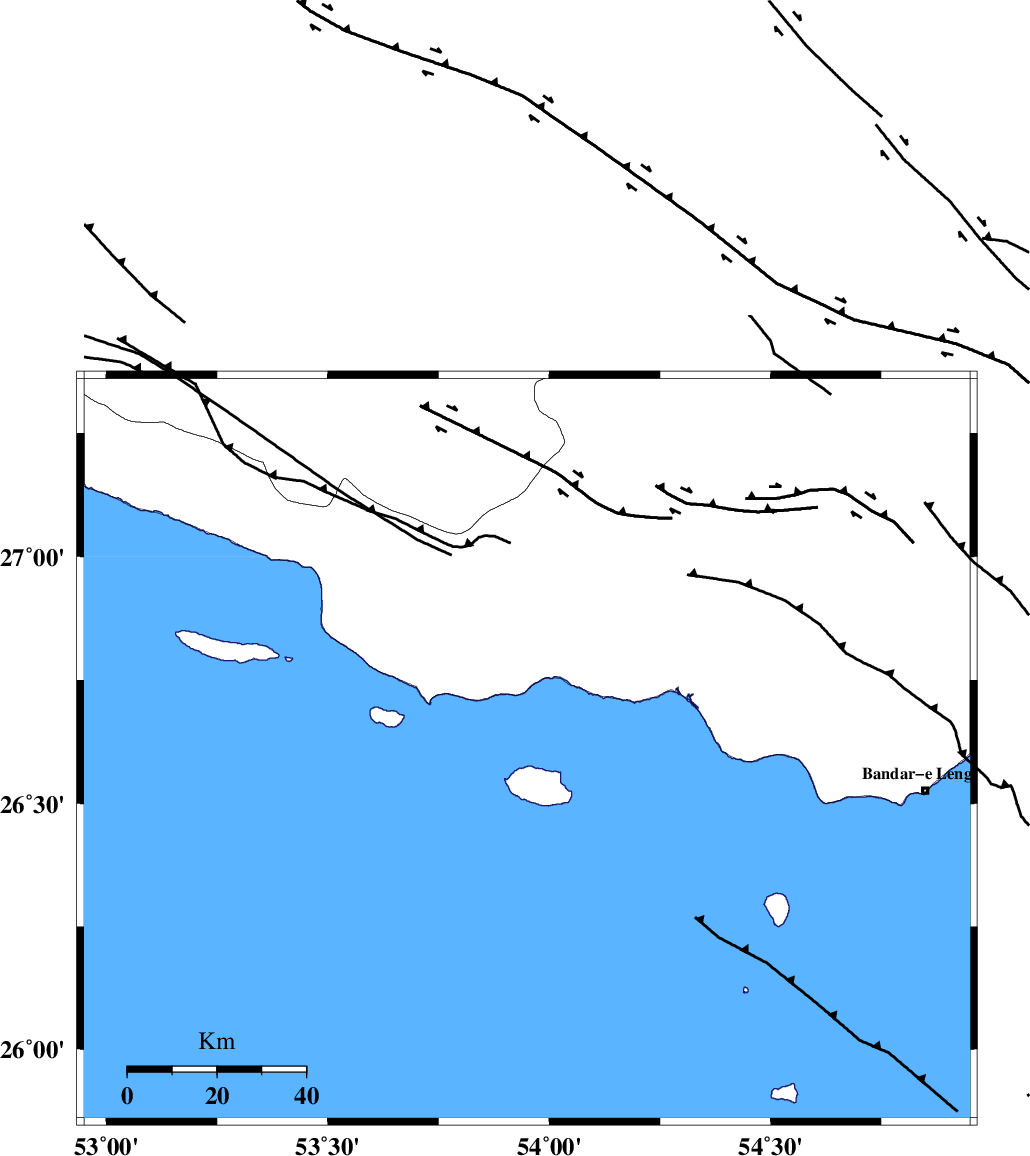

Faults within 150 km: |
|
| ZFF1 (Length: 165 km) , Distance to epicenter: 15 km | |
| MFF3 (Length: 292 km) , Distance to epicenter: 35 km | |
| MFF1 (Length: 180 km) , Distance to epicenter: 52 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 7 |
| Error in Latitude | >5.6 km |
| Error in Longitude | 3.8 km |
| Error in Depth | 7.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 94267 | IIEES | GHIR | E | 4440.8 | 0.84 | 2014-11-13 00:40:06 | 2014-11-13 01:06:00 | n |
| 94268 | IIEES | AHRM | N | 463.8 | 0.52 | 2014-11-13 00:40:50 | 2014-11-13 01:06:00 | n |
| 94269 | IIEES | KRBR | N | 236.7 | 0.56 | 2014-11-13 00:41:00 | 2014-11-13 01:06:00 | n |
| 94270 | IIEES | NASN | N | 143.5 | 0.6 | 2014-11-13 00:41:44 | 2014-11-13 01:06:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GHIR | Z | Pn | E | 2014-11-13 00:39:35 | 0.03 | y | 209 | 333 | |||
| IIEES | GHIR | E | Sg | E | 2014-11-13 00:40:01 | -0.02 | y | 209 | 333 | |||
| IIEES | BNDS | Z | Pn | E | 2014-11-13 00:39:39 | 0.04 | y | 237 | 68 | |||
| IIEES | KRBR | Z | Pn | E | 2014-11-13 00:40:07 | 0.04 | y | 465 | 36 | |||
| IIEES | CHBR | Z | Pn | E | 2014-11-13 00:40:31 | -0.08 | y | 663 | 98 | |||
| IIEES | SHRT | Z | Pn | E | 2014-11-13 00:41:12 | -0.16 | y | 991 | 37 | |||
