Magnitude |
:2.7 |
| Date & Time (UTC) | 2018-09-09 10:22:50.8 |
| Date & Time (Local) | 1397/6/18 14:52:50.8 |

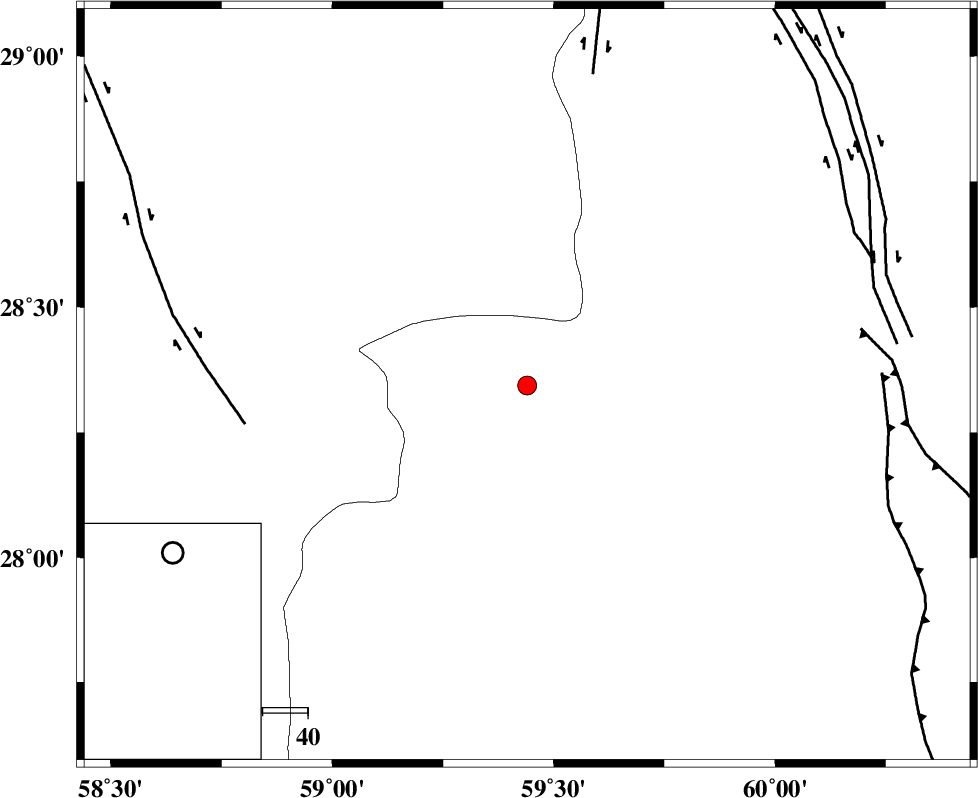

| Location | Lat:28.344 Lon: 59.44 |
| Region | Sistan va Baloochestan Province, 136 km South-East of Bam |
Nearest Cities |
|
| 54 km South East of Hoseynabad, Kerman Province | |
| 69 km South East of Mohammadabad-e gonbaki, Kerman Province | |
| 79 km South East of Void, Kerman Province | |
| 87 km South East of Fahroj, Kerman Province | |
| 90 km North West of Bozman, Sistan va Baloochestan Province | |
| Depth | 6 km |
| Agency | |
Faults within 150 km: |
|
| BAM_F (Length: 118 km) , Distance to epicenter: 63 km | |
| KANURAK_F (Length: 135 km) , Distance to epicenter: 70 km | |
| DAMAN_F (Length: 167 km) , Distance to epicenter: 75 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | >6.3 km |
| Error in Longitude | 8.5 km |
| Error in Depth | 9.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 136563 | IIEES | KRBR | E | 20.1 | 0.34 | 2018-09-09 10:24:31 | 2018-09-10 08:11:00 | n |
| 136564 | IIEES | KRBR | N | 17.5 | 0.47 | 2018-09-09 10:24:31 | 2018-09-10 08:11:00 | n |
| 136565 | IIEES | BNDS | N | 16.7 | 0.46 | 2018-09-09 10:24:36 | 2018-09-10 08:11:00 | n |
| 136566 | IIEES | BNDS | E | 17.2 | 0.52 | 2018-09-09 10:24:36 | 2018-09-10 08:11:00 | n |
| 136567 | IIEES | BSRN | E | 11.5 | 0.56 | 2018-09-09 10:24:51 | 2018-09-10 08:11:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ZHSF | Z | Pg | E | 2018-09-09 10:23:23 | -0.14 | y | 191 | 42 | |||
| IIEES | ZHSF | N | Sg | E | 2018-09-09 10:23:47 | 0.01 | y | 191 | 42 | |||
| IIEES | KRBR | Z | Pn | E | 2018-09-09 10:23:39 | 0.04 | y | 318 | 306 | |||
| IIEES | BNDS | Z | Pn | E | 2018-09-09 10:23:41 | 0.28 | y | 338 | 253 | |||
| IIEES | BNDS | N | S | E | 2018-09-09 10:24:18 | -0.25 | y | 338 | 253 | |||
| IIEES | BSRN | Z | Pn | E | 2018-09-09 10:23:49 | -0.06 | y | 403 | 356 | |||
| IIEES | SHRT | Z | Pn | E | 2018-09-09 10:24:13 | 0.19 | y | 594 | 8 | |||
